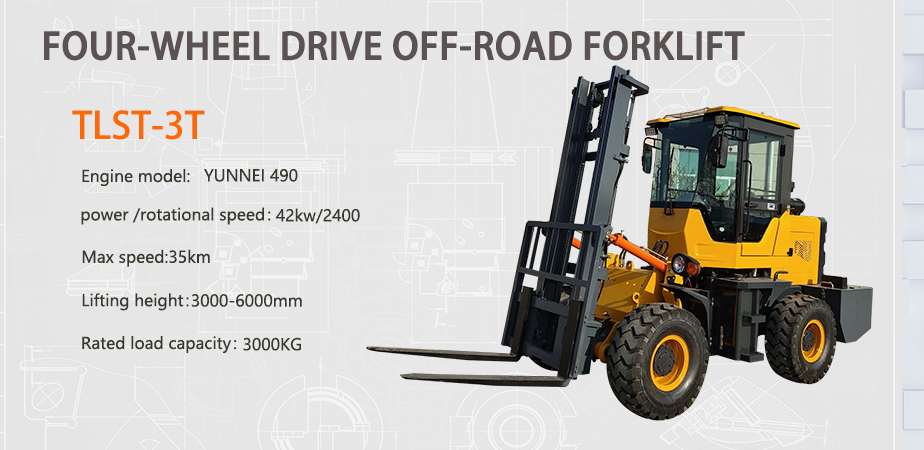

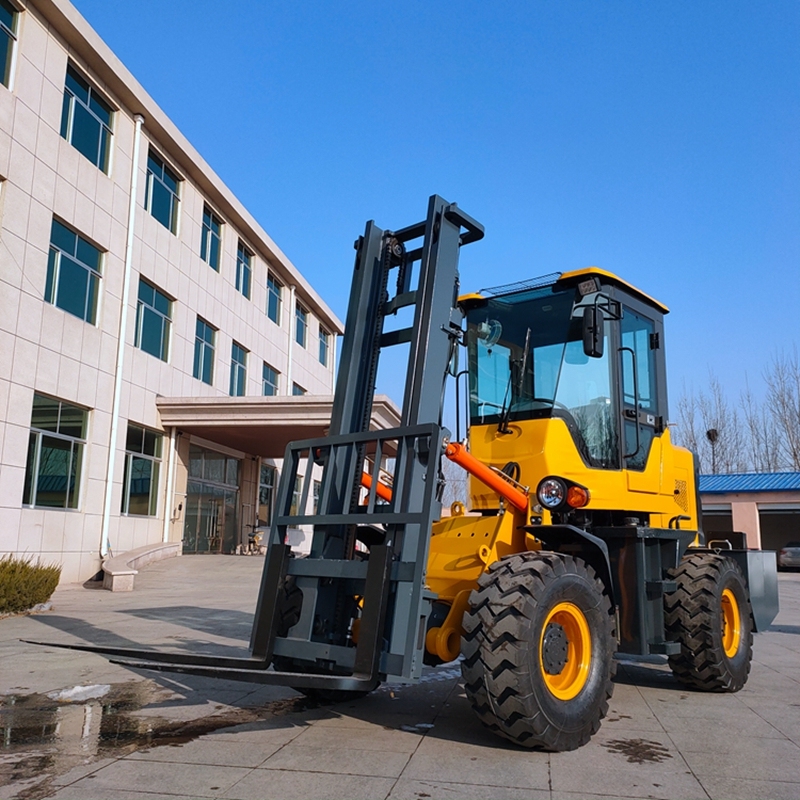

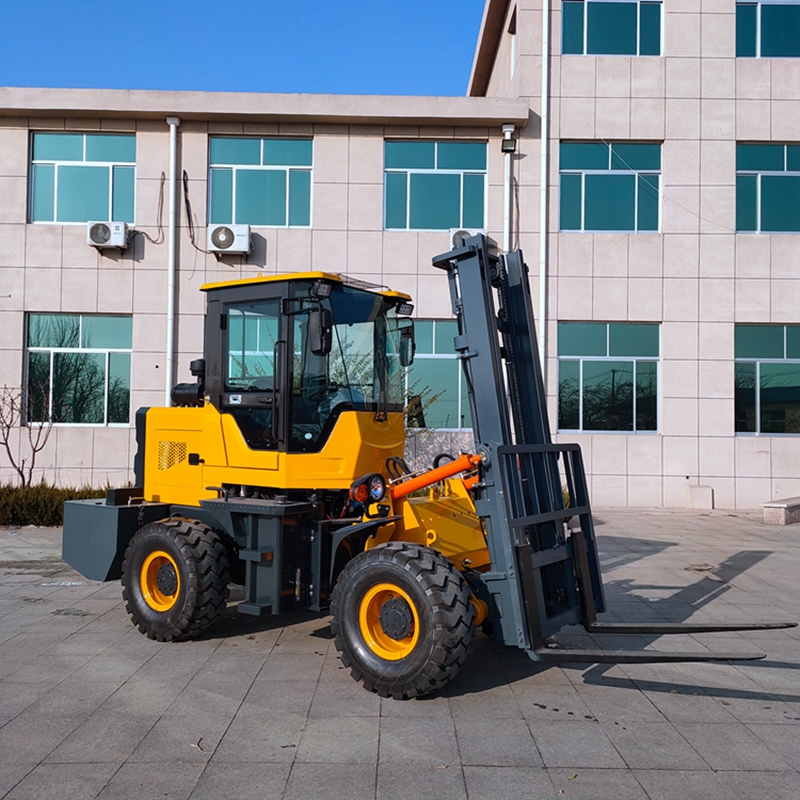

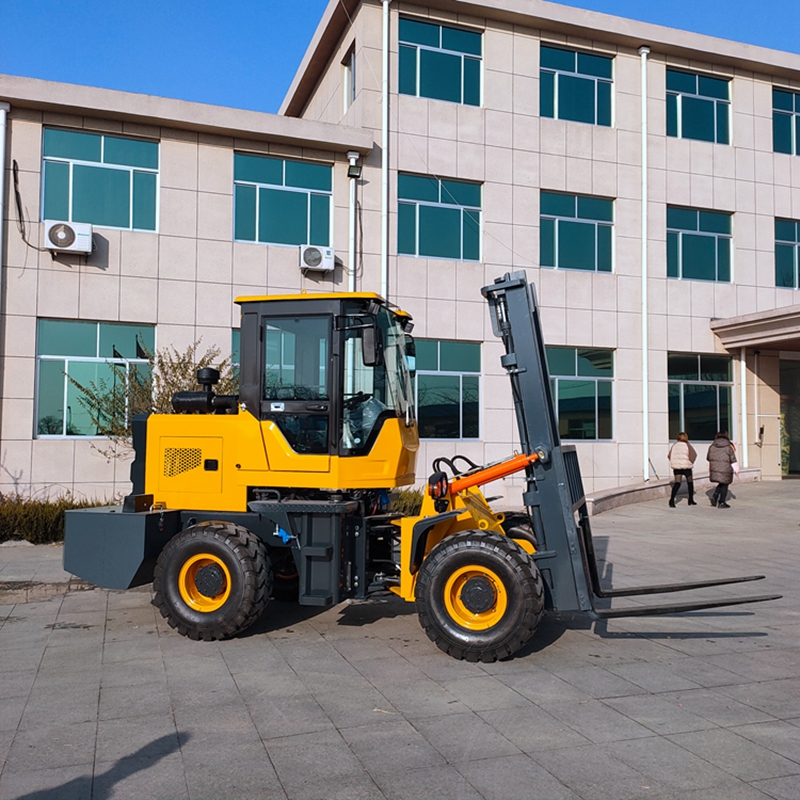

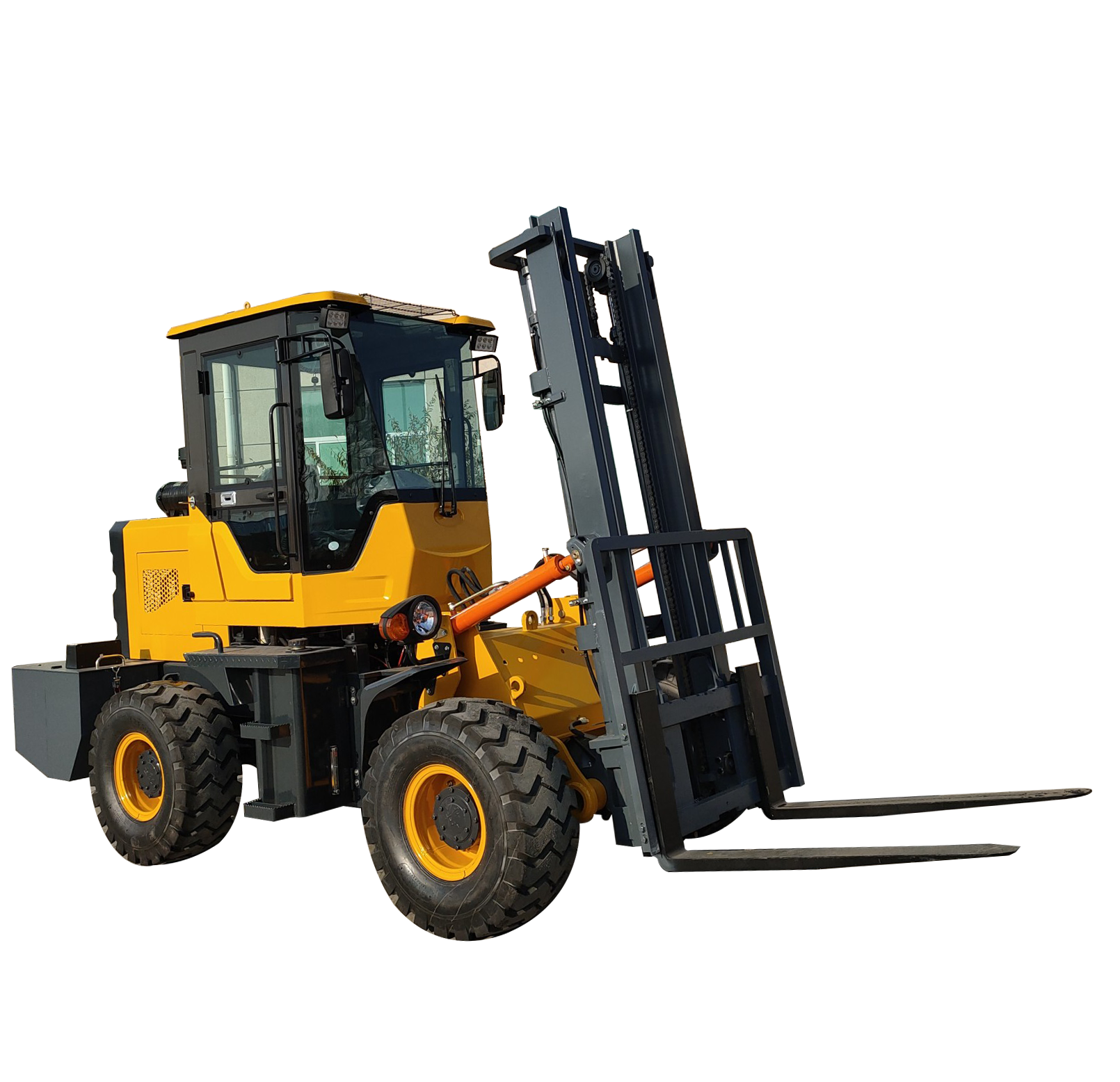

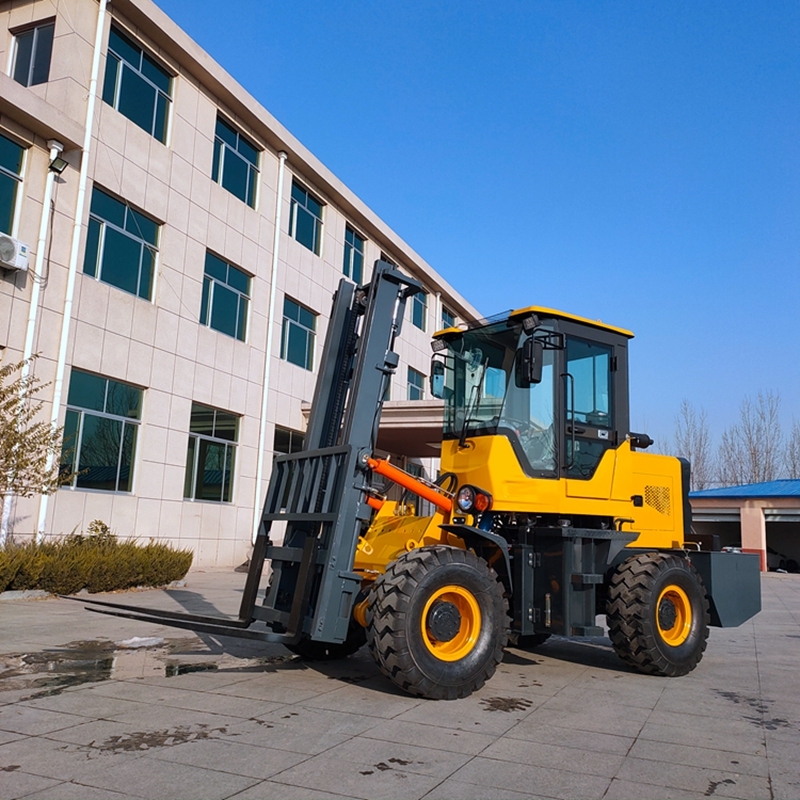

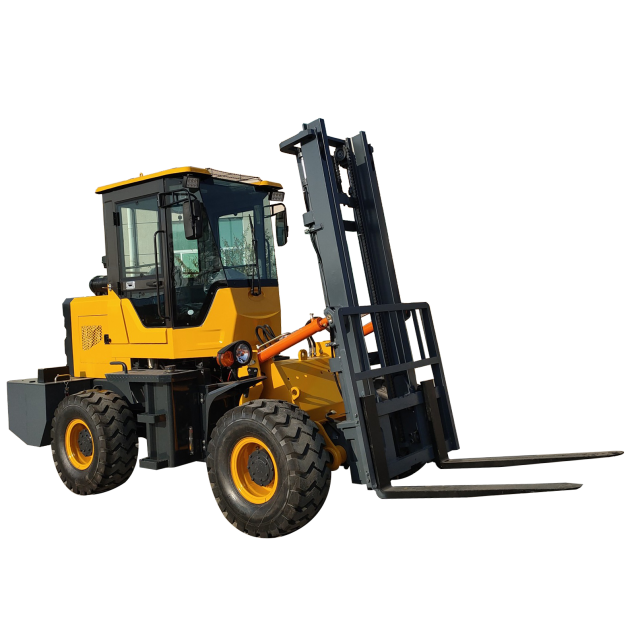

| Specification and model | T30 |
| Rated lifting load | 3000kg |
| Rated discharge height | 3000-6000mm |

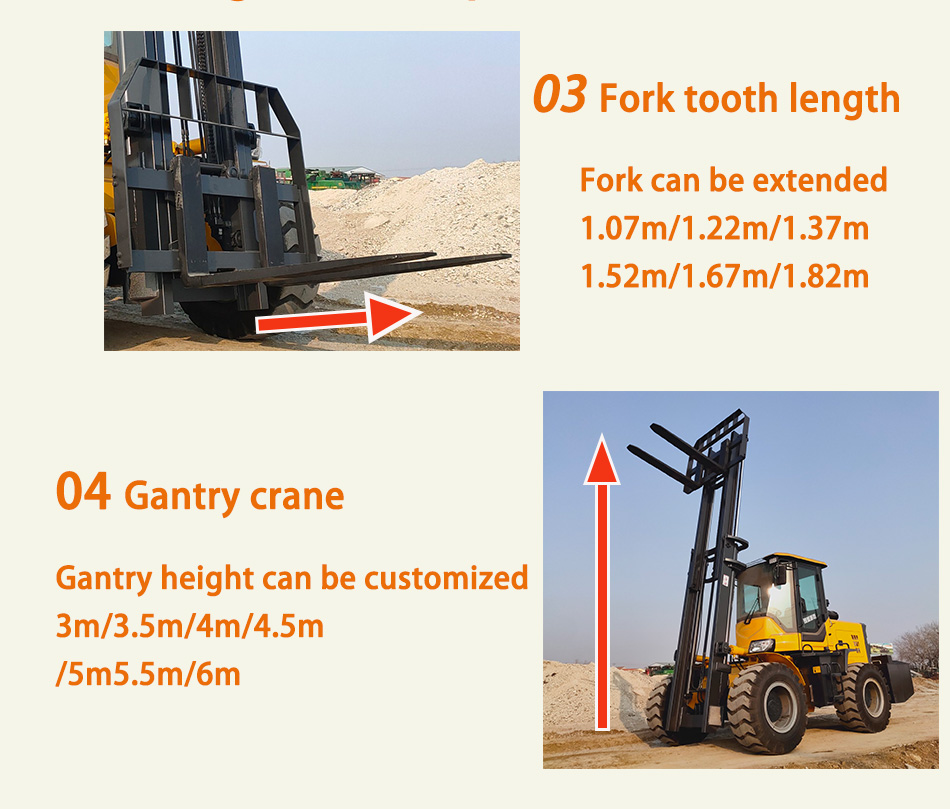

| Fork length | 1220-1820mm |
| Engine type | YN27UAF4 |
| Engine power | 37kw |
| Maximum climbing capacity | ≥30° |
| Minimum turning radius | 4500mm |

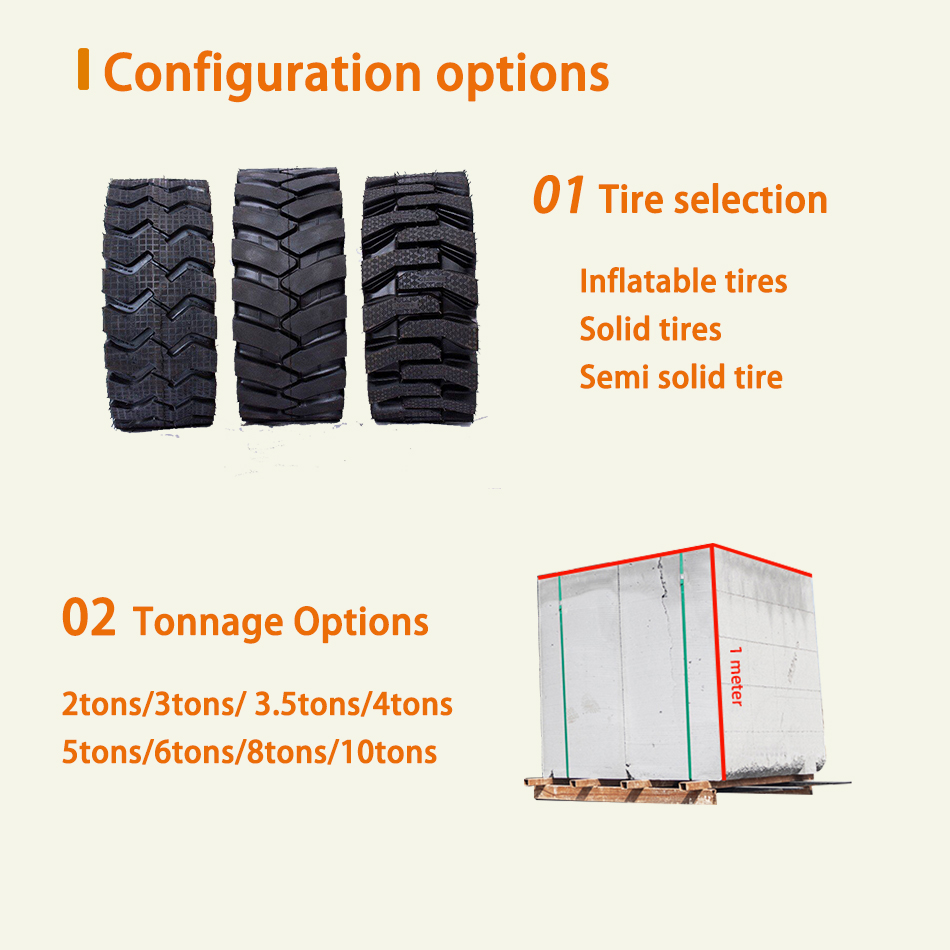

| Tyre type | 20.5/70-16 |
| Distance from the ground in front of the portal frame | 150-170mm |
| Gantry height | 2150mm |
| Wheelbase | 1880mm |
| Ground clearance at center of wheelbase | 280mm |
| Top speed | 40km/h |
| Vehicle mass | 3800kg |
| Overall dimensions (L * W * H) | 3800*1800*2700 |
 |
 |
 |
 |
