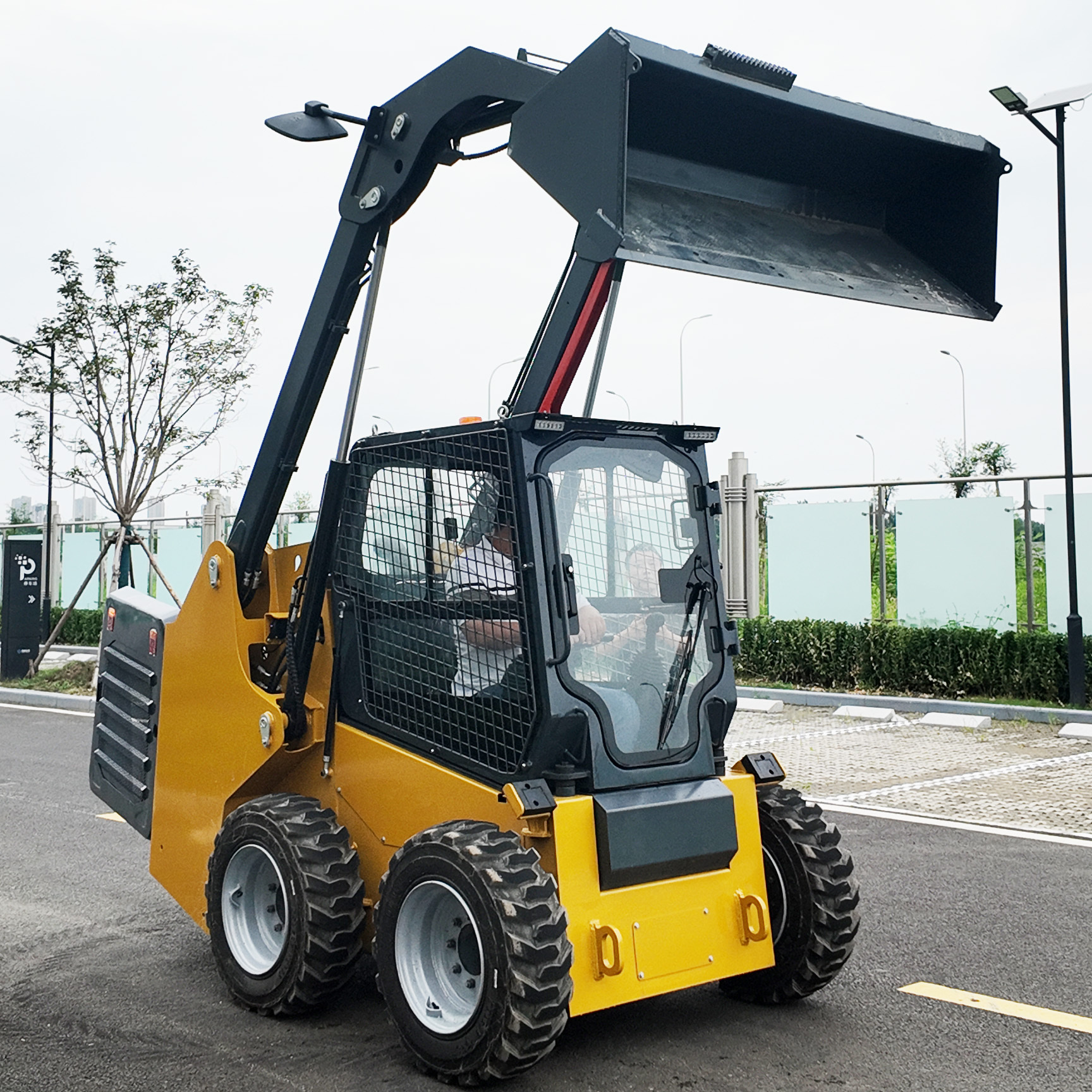

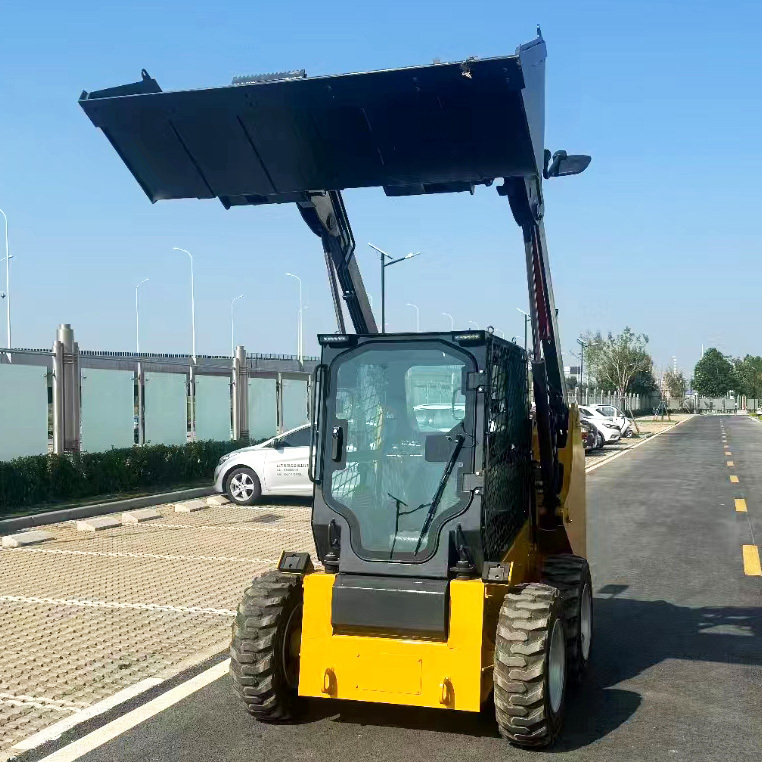

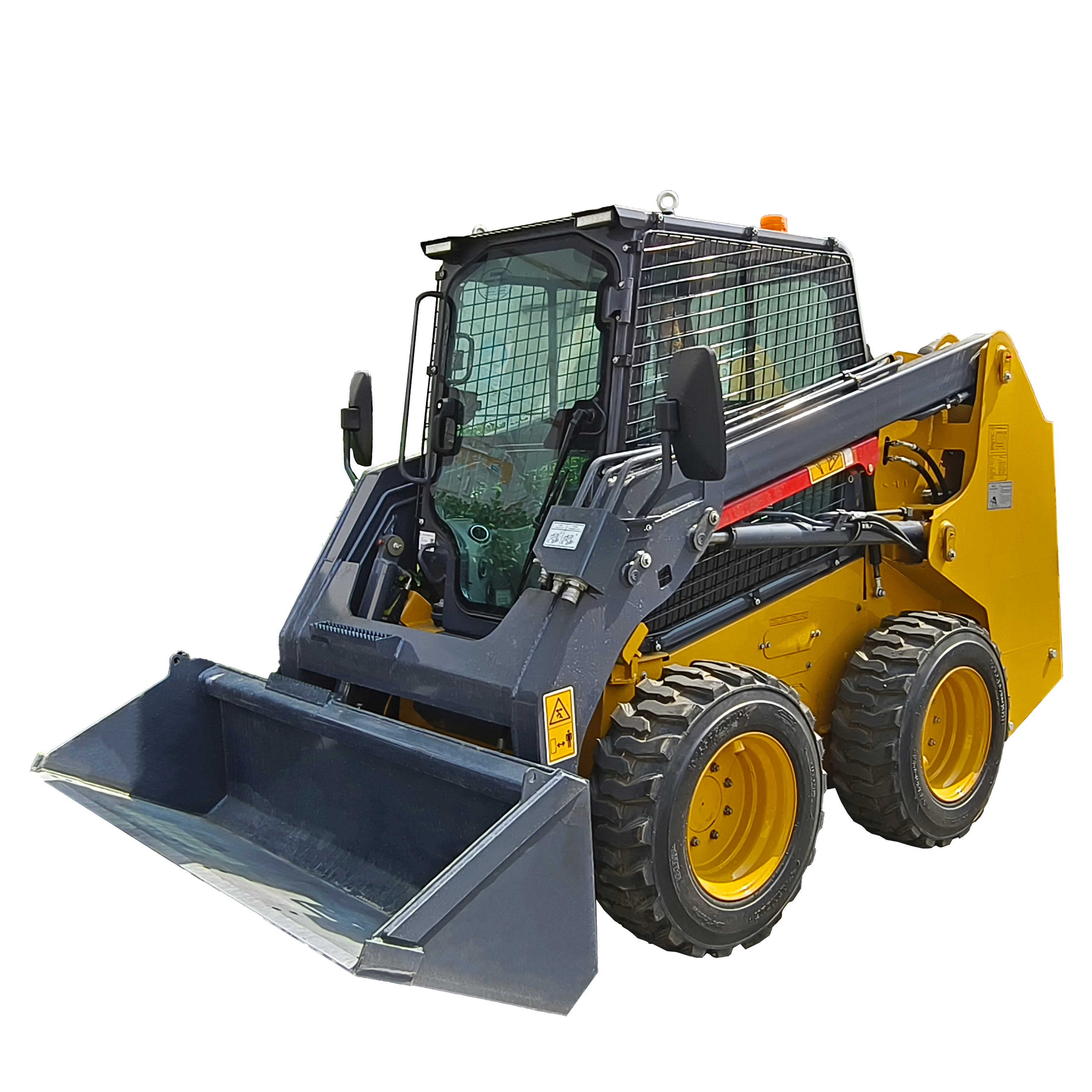

| Ride-on type | S55 Wheeled |
| Main engine performance parameters | |
| Engine model | Cummins HFC4DA1-2C3 |
| Rated power | 36.8KW |
| Rated load | 890Kg |
| Maximum breakout force | ≥25KN |
| Bucket capacity | 0.4m³ |
| Working system pressure | 21Mpa |
| Fuel tank capacity | 80L |
| Operational quality | 2880±3% |
| Shape index parameters | |
| Tire model | 10-16.5 |
| Bucket width | 1800±2%mm |
| Maximum unloading height | 2384±5%mm |
| Unloading distance | 520±1%mm |
| Wheelbase--(track) | 1370mm |
| Ground clearance | 185±2%mm |
| Vehicle width | 1640±2%mm |
| Travel speed | 0-12km/h |
| Hydraulic flow | 55L/Min |
| Height to bucket pin | 3020mm |
| Horizontal length of bucket on the ground | 3450±5%mm |
| Horizontal length of bucket pin | 2700±5%mm |
| Maximum horizontal span of bucket bottom | 2846±5%mm |
| Tip angle of bucket on the ground | 27±2mm |
| Tip angle of bucket at highest position | 43±2mm |
| Tail length | 1160±5%mm |
| Maximum operating height | 3790mm |
| Total cab height | 2095±5%mm |
|

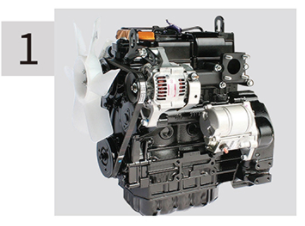

Yanmar 380 three-cylinder wa- ter-cooled engine powerful |
 |
 |

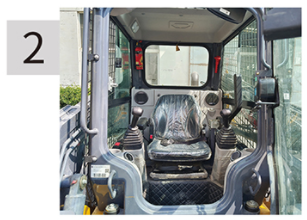

Minimalist central control, easy to use and operate. |
|

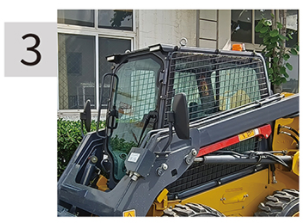

Standard cab, safer and more reliable, dustproof and noise- proof |
 |
|
|

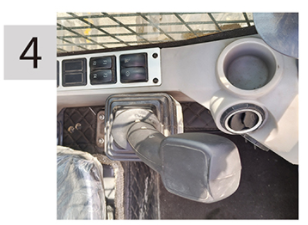

Hydraulic pilot opera-tion, more flexible and smooth opera-tion |
|

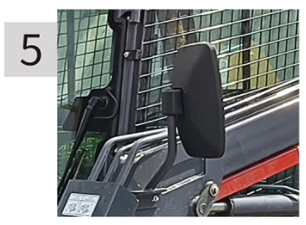

With rearview mirror, safe opera-tion, safer construc-tion. |
 |
 |

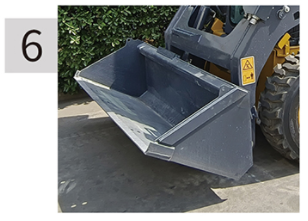

Thickened bulldozer, can be adjusted up and down |
|
|
|
|
|
|
 |
 |
 |
 |
