Compact Mini Hydraulic Excavator for Tight Job Sites
TC-06Q is built to give contractors and operators a practical digging solution where space is limited and transport matters. This mini excavator uses a compact body, a boom deflection design for narrow working environments, and reinforced rubber tracks to help protect the road surface during movement on finished ground. Its size makes it easy to load onto light trucks or small trailers, and six units can be packed into one 20GP container, which helps lower freight cost and simplify planning for distributors and project buyers. For teams looking for mini excavator manufacturers, mini excavator factory sourcing, or dependable excavator manufacturers with practical export-ready packaging, this model offers a balanced combination of mobility, stability, and jobsite usability.

Proven Specifications with Stable Core Components
The EZ-17Q is engineered with reliable working data that supports everyday excavation, loading, and site preparation tasks.
It is powered by a LONGXINg300FD  engine with 6.3/6.8Kw output and 0.719L displacement, paired with a hydraulic system using well-known brand components for stable quality and consistent performance.
Key operating figures include a machine weight of 600kg, bucket capacity of 0.025m³, hydraulic flow rate of 40L/min, job stress of 16mpa, and gradeability of 20%, while the machine delivers a max digging height of 3245mm, max unloading height of 2114mm, max digging depth of 1090mm, max digging radius of 2250mm, and minimum turning radius of 1620mm.
These parameters position it as a practical mini hydraulic excavator and mini crawler excavator for buyers who need documented performance, straightforward operation, and stable support from experienced mini equipment suppliers.

Well-Suited for Rental Fleets, Landscaping, and Utility Work
With track width of 170mm, track ground length of 1030mm, external dimensions of 2287*700*2130mm, and a 1100*200mm dozer blade, TC06 is designed for efficient work in compact spaces, residential areas, indoor-adjacent sites, landscaping projects, trenching, and small construction jobs. The comfortable seat improves operator convenience during longer shifts, and the option to equip hydraulic pipelines expands compatibility with different accessories, giving fleet owners and project teams more flexibility across mixed tasks. For procurement teams, dealers, and rental operators comparing a mini excavator for sale, this model offers a practical mix of transport convenience, functional reach, and attachment readiness that helps reduce downtime and support wider application coverage.

Key Advantages

Compact Structure for Practical Transport
This mini excavator is built with a compact frame that is easier to move to job sites and can be loaded onto light trucks or small trailers without requiring oversized transport. For dealers, contractors, and excavator manufacturers seeking efficient logistics, this reduces handling cost and makes deployment faster. Six units fit into one 20GP container, which is a clear advantage for mini excavator factory shipping plans because it improves freight utilization and supports stable delivery planning.

Stable Performance and Broad Attachment Compatibility
The machine uses hydraulic system components from well-known brands, which helps maintain consistent operation and supports long service life in daily work. Its boom deflection design makes the mini hydraulic excavator better suited to narrow work areas, while reinforced rubber tracks help protect road surfaces during movement. With hydraulic pipelines available for different accessories, this mini crawler excavator offers practical attachment compatibility that helps operators handle more tasks with one machine and keeps maintenance and parts management more straightforward.

MODEL

06Q

WEIGHT

Qverall weight

660kg

SIZE

Total length

2287mm

Total width

700mm

Total height

2130mm

Max.digging radius

2254mm

Max.digging depth

1091mm

Max.diging height

2114mm

Counterweight ground clearance

1386mm

Max.digging force

3.5KN

DRIVE

Engine brand

ZONGCHENG/LONCIN

Engine model

TR306/G300FDA

Maximum power

6.3kw(8.5HP)/6.8kw(9.2HP)

WALKING CHARACTERISTICS

Walking speed

0-1.5km/h

Climbing angle

30°

Use Scenarios

Urban Maintenance and Narrow Access Jobs
On residential streets, utility corridors, and small renovation sites, space is often limited and access is difficult for larger equipment. Users need a machine that can enter tight areas, work close to walls, and avoid damaging the ground surface. This mini excavator fits that environment well because its boom deflection design improves reach in restricted spaces and the reinforced rubber tracks support work on finished surfaces. It gives operators a practical tool for tasks where a larger machine would be hard to position.

FAQ 1

Q: Is this mini excavator suitable for narrow spaces?
A: Yes. The swing boom design allows efficient digging beside walls, fences and in narrow access job sites.

FAQ 2

Q: How many units can fit in one container?
A: Up to 6 units can be loaded into one 20ft container, helping save shipping costs.

FAQ 3

Q: Can it use attachments?

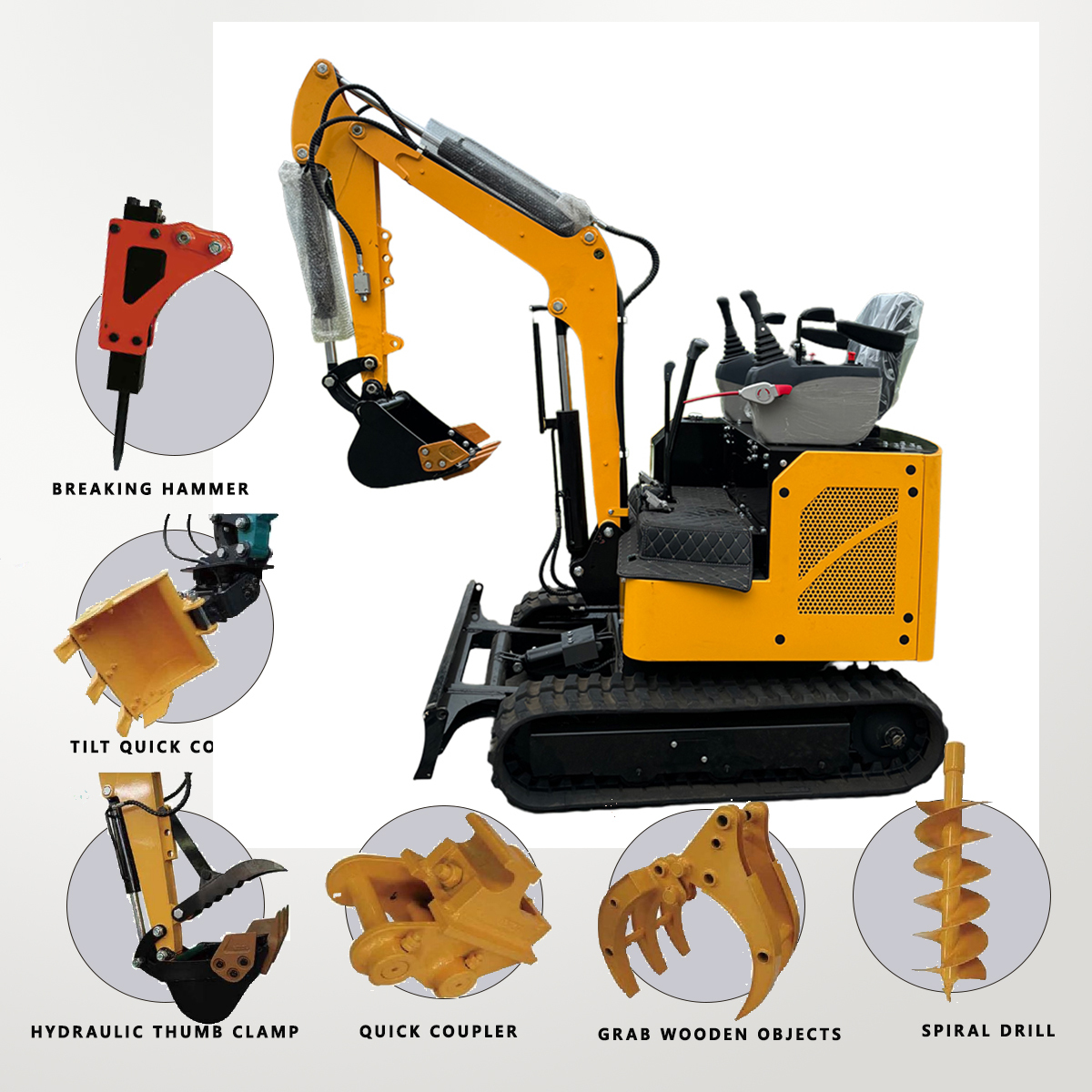

A: Yes. It can be equipped with hydraulic lines for breaker, auger, grapple and other attachments.

FAQ 4

Q: Are rubber tracks better for residential jobs?
A: Yes. Reinforced rubber tracks reduce damage to roads, tiles and finished surfaces.

FAQ 5

Q: What jobs is this machine best for?
A: Landscaping, trench digging, farm work, residential construction and indoor-outdoor small projects.
