The concrete mixer truck is an essential piece of equipment in modern construction, designed for efficient mixing and transportation of concrete. This cement mixer truck features a rotating drum that continuously mixes the material during transit, ensuring the concrete remains fresh and ready for use upon arrival.
Fast Mixing & Discharge Performance
With a mixing time of approximately 3–4 minutes per batch and a discharge time of only 10 minutes, this transit mixer truck significantly improves construction efficiency, especially for time-sensitive projects.
Dual Function Design
This concrete transport truck combines mixing and delivery functions in one unit. It reduces the need for additional equipment and ensures smooth workflow from batching plant to construction site.
Continuous Mixing System

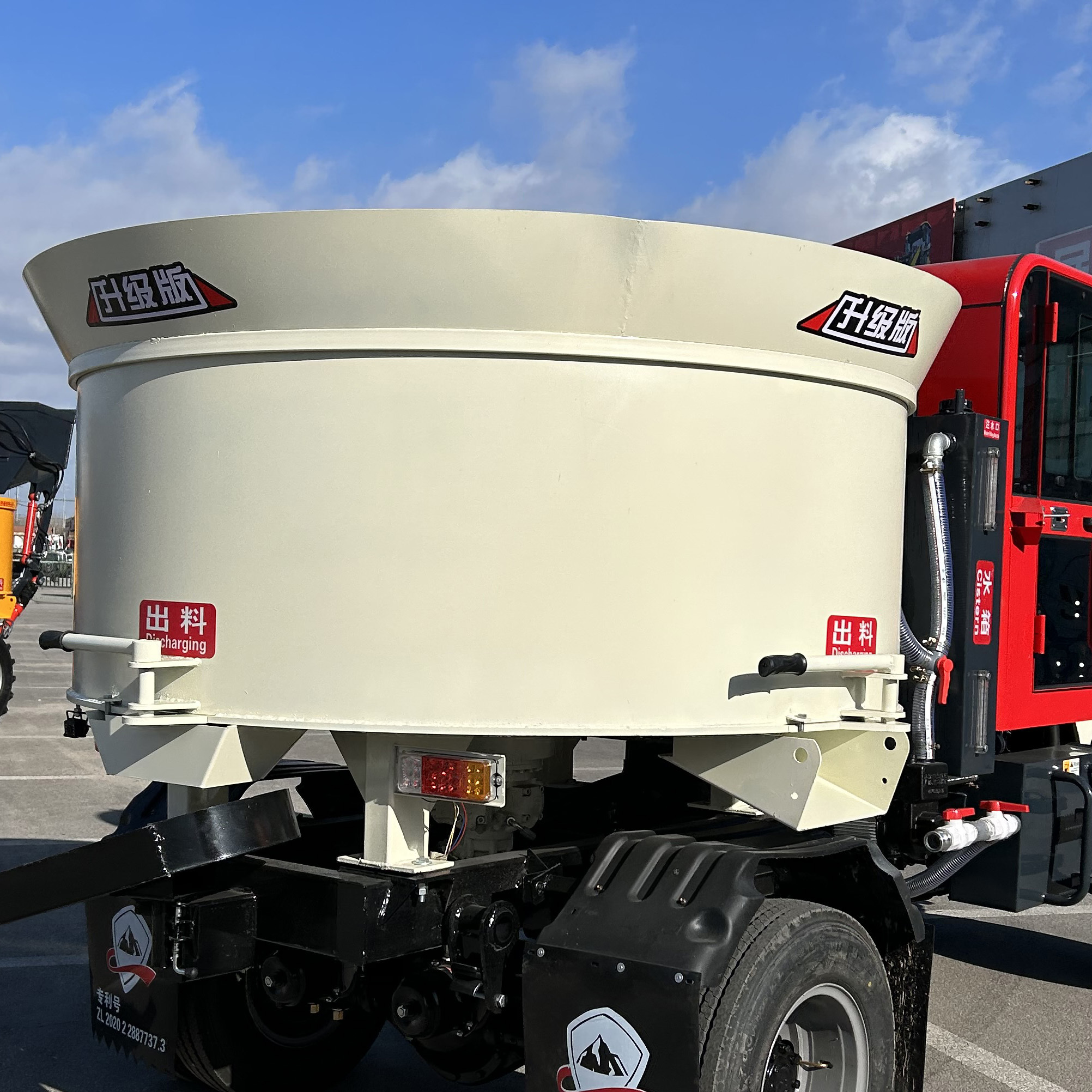

The internal spiral blades inside the drum maintain constant agitation, preventing segregation and ensuring uniform concrete quality during transportation.
High Efficiency for Large Projects

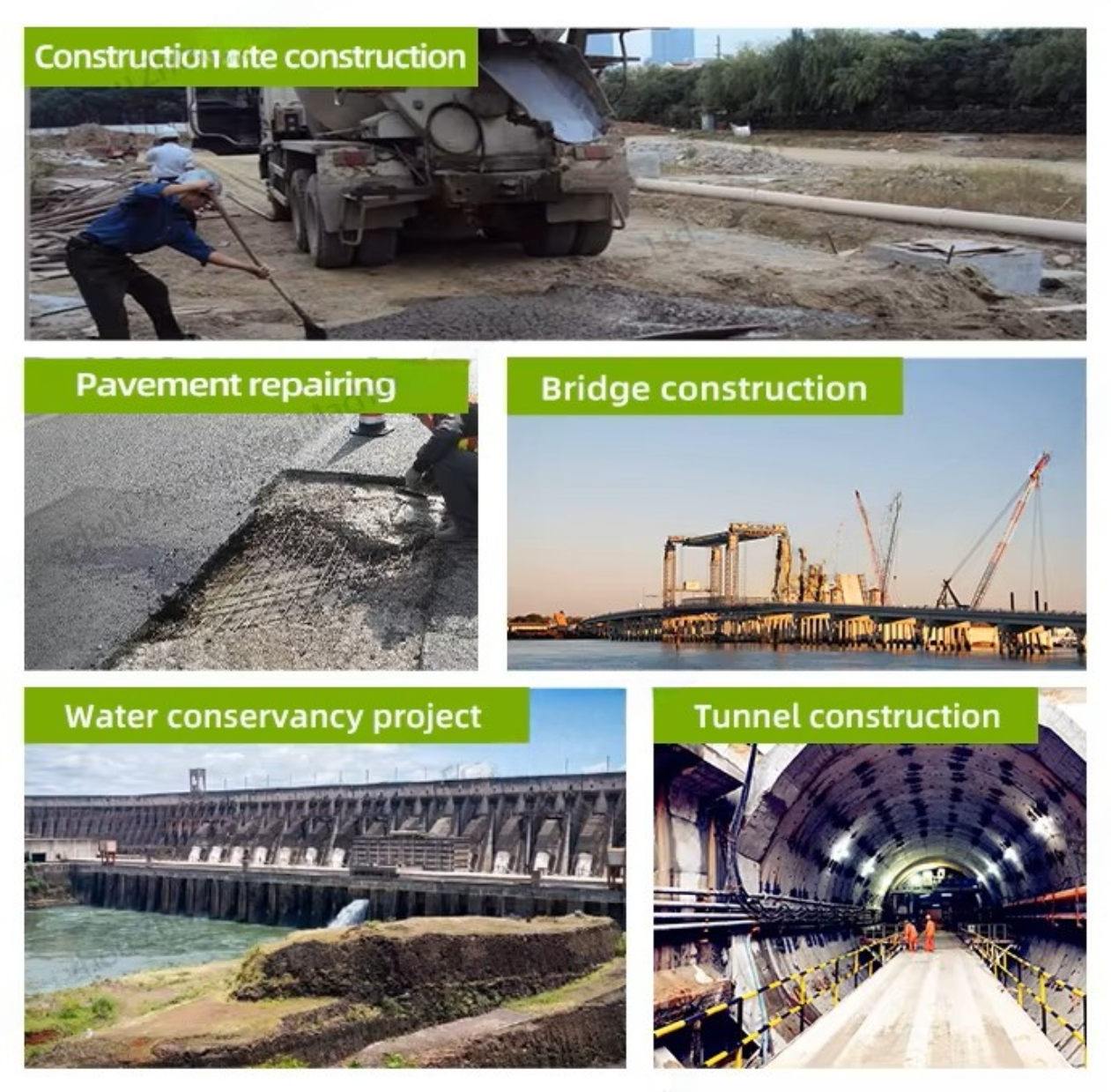

This mixer truck for sale is widely used in infrastructure projects such as highways, bridges, and urban construction, where consistent supply and fast delivery are required.
Durable & Reliable Structure
Built with a strong chassis and wear-resistant drum, the machine is designed for long-term operation in demanding construction environments.
| Type | TLST-3200 |
| Engine type | 4102pressure boost |
| Ratde power | 76-78KW |
| stirring system | piston motor |
| churning time | ≈3min/pot |
| Capacity of the mixing drum | 3.2m³ |
| Stirring volume | 18m³ |
| Rated load capacity | 7040kg |
| gearbox | 145 |
| Axle model | 1069 |
| brake mode | automatically air-cut brake |
| Tire model | 700-16 |
| Tire number | six-wheeled |
| maximum travelling speed | ≈80km/h |
| Climbing ability | 28° |
| Driving form | Four-wheel drive/two-wheel drive switch |
| Overall dimensions (L * W * H) | 4750*2150*2350mm |
| Vehicle weight | 3900kg |
111
 |
 |
| SUBSTITUTION EFFICIENCY ANALYSIS: In harsh or dangerous working environments, such as mines and construction sites, Concrete mixer truck can replace more manpower and ensure personnel safety. |
|
|
 |

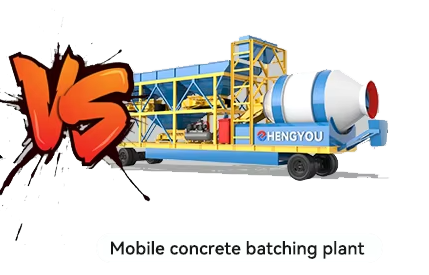

| Concrete mixer truck: any construction preparations. The operation is simple and convenient. It can directly arrive at the construction site for work without | Mobile concrete mixing station: Installation requires a considerable amount of time and space, is costly and the operation is also very complicated. |
|
 |
| Concrete mixer trucks: Highly maneuverable, capable of driving directly onto the construction site. |
Concrete pump trucks: Less maneuverable, unable to drive directly onto the construction site, |
FAQ:
Q1: What is the main function of a concrete mixer truck?
A: It mixes and transports concrete while keeping it in a usable state during delivery.
Q2: How long does it take to mix one batch?
A: About 3–4 minutes per batch.
Q3: How fast is the discharge?
A: The truck can discharge concrete within approximately 10 minutes.
Q4: Does the concrete harden during transport?
A: No, the rotating drum keeps the concrete mixed and prevents hardening.
Q5: Is it suitable for large construction projects?
A: Yes, it is widely used in large-scale infrastructure and commercial construction.
