What Payment terms would you accept?

Normally we accept L/C, or /T 30% down payment,balance to be paid against BL copy and loadingpictures.

What is your delivery time?

For standard machine, the delivery time is Within 25-35 days after receiving the down payment.

What services would you offer if I buy from you?

Our trained Professional service team offershigh-quality in-time service in a very friendly way.For a good customer experience,the content of pre-sales includes the recommendationbased on the right products on physical condition.All you have to do is to inform us of your needs.

Do you accept small order?

Yes. the MOQ is 1 units for most of products.For very small handling equipments,we can check case by case.

Description
More informations

Built for Multi-Task Earthmoving Productivity
The TL-388A backhoe loader machine is designed to help contractors and operators handle digging, loading, pushing, and material transfer with one practical platform, reducing the need to switch between multiple machines on smaller and medium job sites. As a versatile backhoe front end loader, it combines front loading capability with rear excavation performance, making it a strong fit for construction crews, farm operators, municipal teams, and equipment buyers looking for reliable backhoe loaders that can work across varied ground conditions. Its compact body and small turning radius support efficient movement in tighter work areas, while the stable 4×4 configuration helps the machine stay productive where site access, maneuverability, and uptime matter most.
Technical Strengths That Support Demanding Daily Work
This model is powered by a YC4A105Z-T20 engine with 75 rated power at 2200 rated speed, paired with a hydraulic system built to deliver dependable operation under load. The machine’s overall weight is 9200, with an overall length of 6700, maximum width of 2500, total height of 3870, and a cab height of 3200, giving it a solid working profile for field and site use. For loading tasks, it offers a 1 bucket capacity, 2500 load-bearing capacity, 4500 bucket lift height, and 3200 bucket tipping height; for digging, it provides 5200 digging depth, 0.3 backhoe capacity, and 4082/4500 maximum digging depth. These working figures make it a practical excavator backhoe loader option for buyers who need balanced performance from a single machine rather than specialized equipment for every task.
Well-Suited for Construction, Agriculture, and Fleet Purchase Needs
For procurement teams, dealers, and loader manufacturers evaluating equipment for resale or project deployment, this TL-388A delivers the versatility that keeps projects moving in road building, municipal maintenance, farm work, and general construction. The 25~30 angle of climb, 6950 minimum turning radius, hydraulic braking emergency brake, and 16.9-28 tyre specification support practical field operation where terrain, safety, and machine control are important. It is a strong choice among wheel loader manufacturers and buyers looking for dependable backhoe machinery that can serve as a backhoe loader for sale with broad application value, manageable maintenance, and a functional design that suits contractors who want one machine to cover excavation, loading, and site support work efficiently.

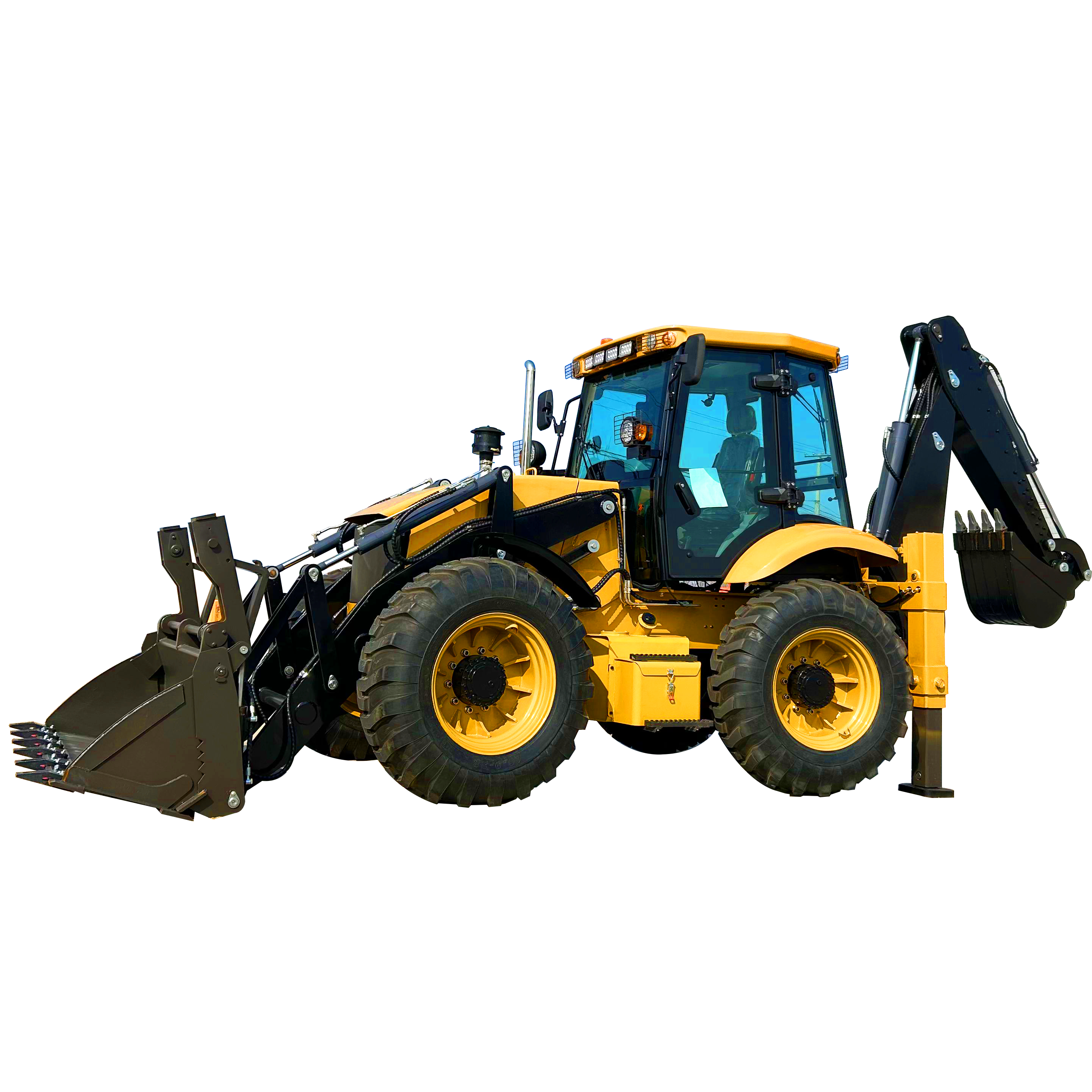

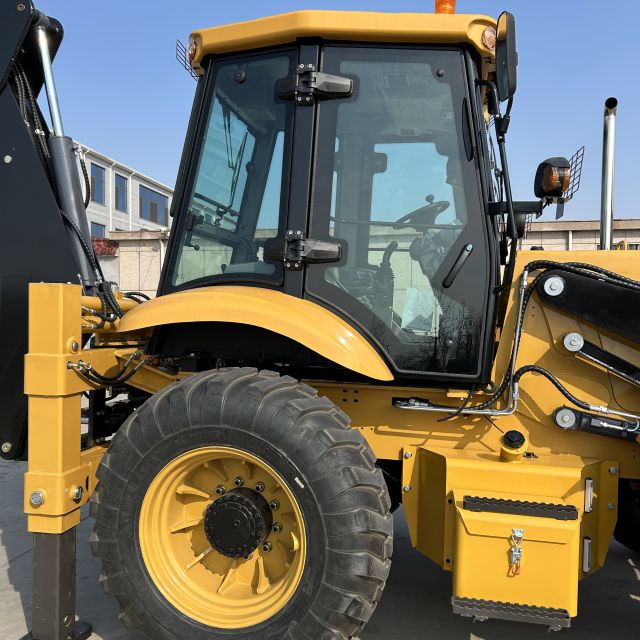

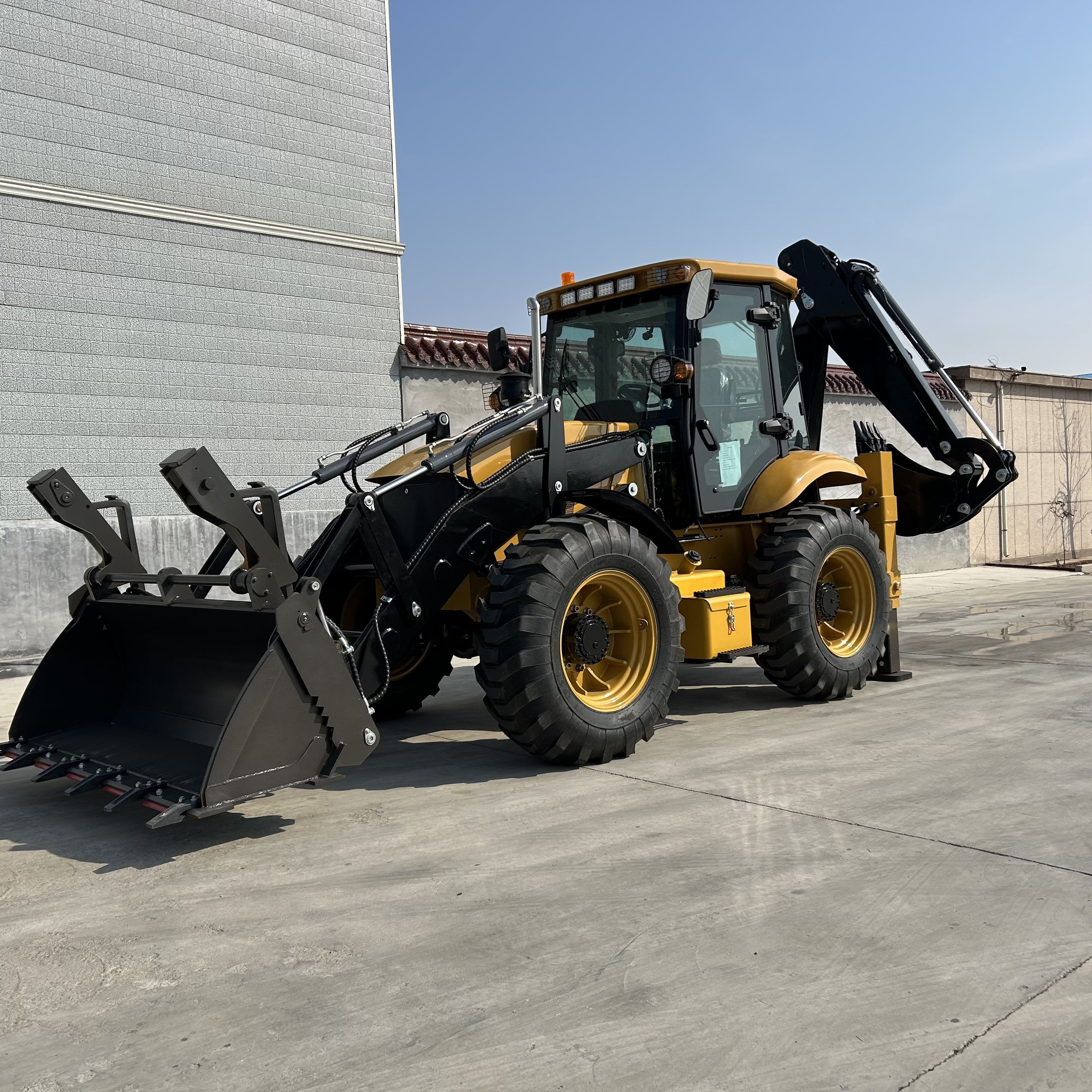

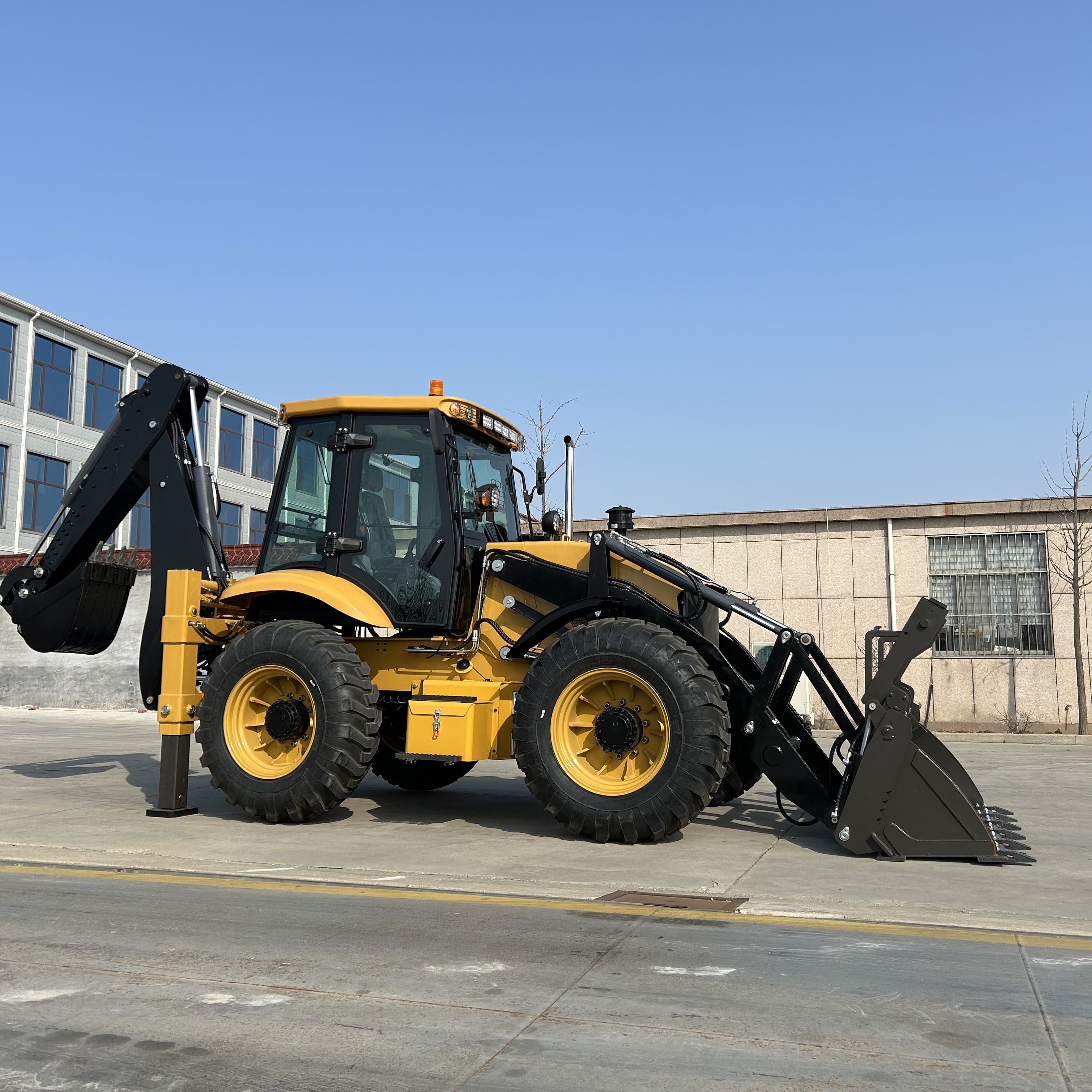

Name: backhoe loader machine - 4x4 construction use
Brand: Qingdao Telstone Trading Co., Ltd.
SKU: TL-388A
Availability: InStock
Rating: 5 (1 reviews)

Key Advantages

Stable Power and Durable Working Structure
This backhoe loader machine is built around a 75 kW YC4A105Z-T20 engine and a 9,200 kg operating weight, giving it the power reserve and chassis stability needed for demanding earthmoving work. The hydraulic system supports consistent digging and loading performance, while the 2,500 kg load-bearing capacity and 5,200 mm digging depth make it practical for repeated site work. For buyers comparing loader manufacturers and wheel loader manufacturers, this structure offers a dependable option that is suited to industrial use and helps reduce performance drop under tough field conditions.
Practical Design for Easy Maintenance and Multi-Task Use
As an excavator backhoe loader and backhoe front end loader, the TL-388A combines loading, digging, and material handling in one compact frame, which improves equipment utilization for contractors and farm operators. Its 6,700 mm overall length and 6,950 mm minimum turning radius support operation in tighter work areas, while the straightforward layout is easier to inspect and maintain than larger specialized machines. This makes it a practical choice for teams that need reliable backhoe machinery and are looking for backhoe loaders that can handle varied jobs without adding unnecessary complexity.

Your Ultimate Partner in Versatile Construction and Earthmoving TasksPerformance Paramete

Engine
Type	YC4A105Z-T20
Rated power	75
Rated speed	2200
Basic parameter
Overall weight	9200
Overall ength	6700
Maximum width	2500
Total height	3870
Cab height	3200
Tyre distance	2200
Minimum ground clearance	520
Bucket capacity	1
Load-bearing capacity	2500
Bucket lift height	4500
Bucket tipping height	3200
Bucket tipping distance	925
Digging depth	5200
Backhoe capacity	0.3
Maximum digging depth	4082/4500
Grab swing Angle	190
Angle of climb	25~30
Minimum turning radius	6950
Hydraulic system
The digging force of the excavator grab	46.5
The digging force of the bucket	31
Bucket lift time	6.8
Bucket descent time	31
Bucket discharge time	20
Brake system
Emergency brake	Hydraulic braking
type	16.9-28

Product Advantages
- Replaceable engine Lower repair costs, faster turnaround, extended machine life
-Customizable attachments | One machine does the work of many – reduce fleet size
- Robust chassis & drivetrain | Built to withstand heavy use in tough conditions
- Operator-friendly controls | Reduced fatigue, higher productivity

Use Cases
The Backhoe Loader is a versatile and powerful construction machine designed for digging, loading, and pushing. It is widely used in construction sites, road building, agriculture, and municipal projects. Equipped with a strong engine and advanced hydraulic system,

it ensures high-efficiency performance in tough conditions. Easy to operate and maintain, it is ideal for small to medium-sized projects. Its compact design and small turning radius boost productivity, making it the perfect choice for your next project.

Application Scenario	Key 388 Advantages
Municipal & Utility	Quick attachment changes, replaceable engine for uptime, roadable chassis
Construction & Demolition	Dual-function (dig + load), attachment expansion for breaking
Agriculture & Farming	Custom attachments for diverse tasks, replaceable engine for seasonal reliability
Utility & Emergency Repair	Rapid deployment, all-in-one workflow, replaceable engine minimizes downtime

One 388 covers four major sectors—municipal, construction, agriculture, and emergency repair. The replaceable engine ensures long-term reliability; customizable attachments enable one machine to do the work of many. Whether you are a municipal contractor, construction company, farmer, or emergency response team, the 388 is a trustworthy all-around partner.

Texture The steel plate is Q355D Which has high yield strength andtensile strength even under-20C.
	Engines There are engines available for selection that are compliant with the second - stage, third - stage, and Euro V emission standards, which can meet the emission requirements of different markets.

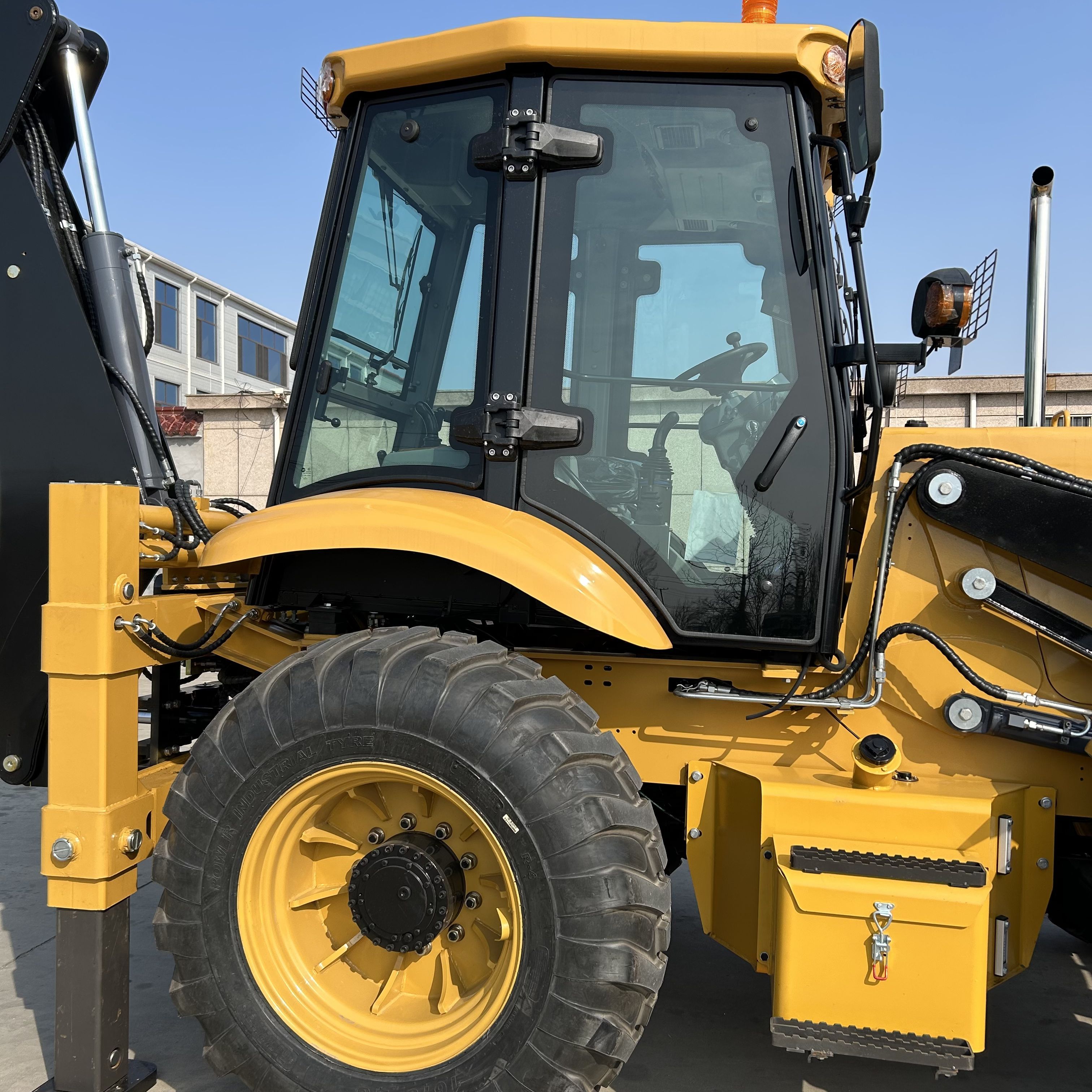

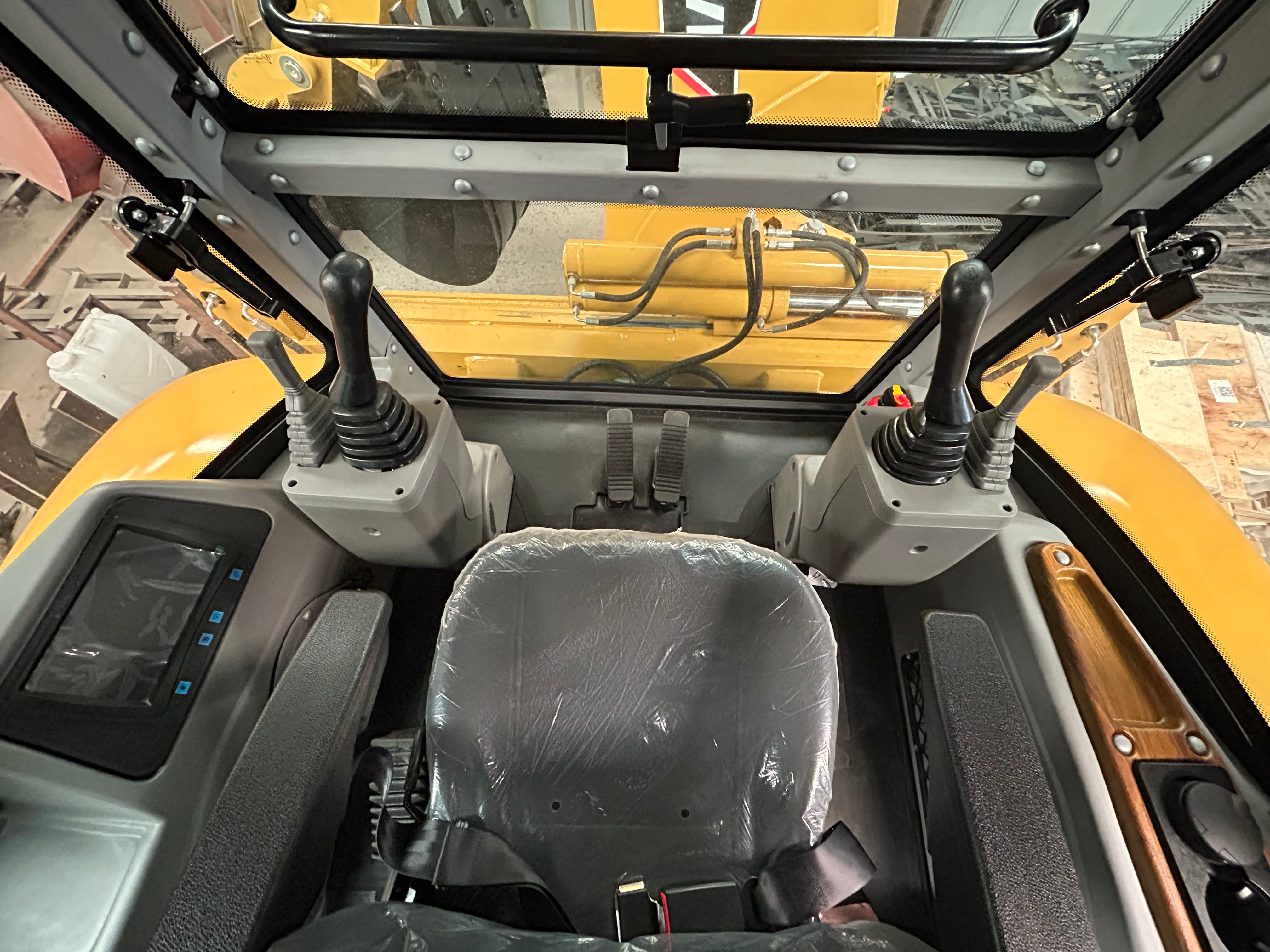

The operation is simple. The cabin is ROPS & FOPS cabin,more safety
	Articulated Pendulum Joint The legendary articulated swing joint:All four wheels are in constant contact with the ground and the machine moves with maximum traction
High Quality Powder Coating Excellent corrosion protection of the powder coating,greatly extended the service life of the machine
	Quick and EasyTool Change Thanks to the hydraulic quick-change system, attachments can be easily and conveniently exchanged. Your machine is again ready for application at once
Easily Accessible Lubrication Service Points In order to save time and facilitate work Lubrication service points are always located in easily accessible locations.
	Large Selection of Attachment Tools Use your machine as amulti-tool-you have a wide selection of attachments available for your loader.
Large Selection of Tires The optimal tyres for every subgrade-you have a wide selection of different tyres available for your loader.

Use Scenarios

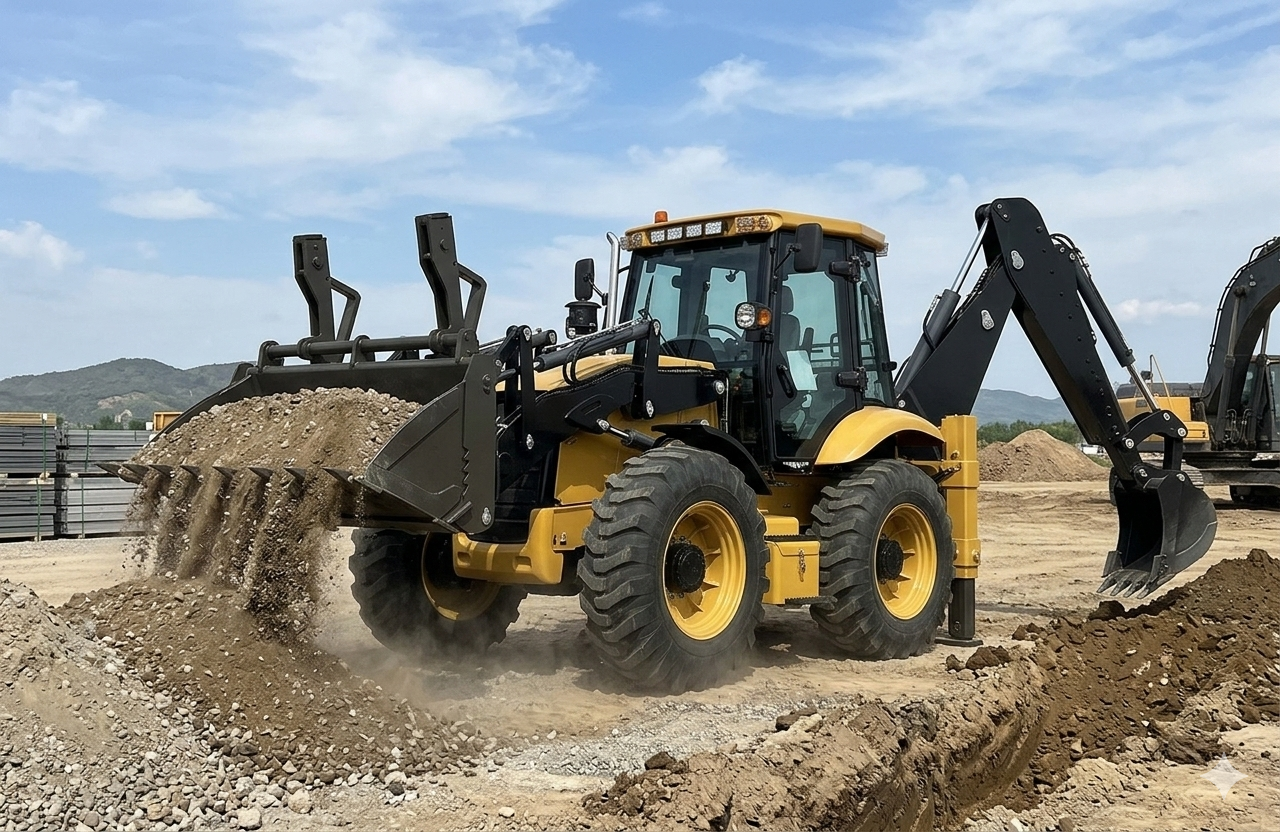

Construction Sites and Road Preparation
On construction sites and road-building projects, crews often need one machine to dig trench lines, load spoil, and move materials between work zones. The backhoe loader machine fits this environment because its front loader and rear digging unit let operators complete multiple tasks without changing equipment, which is useful when space, time, and machine availability are limited. For contractors and site teams, this makes the backhoe loaders a practical choice where stable performance and compact handling matter more than using separate machines for each task.
Farm Work, Municipal Jobs, and Utility Maintenance
In farm yards, municipal repair areas, and utility maintenance sites, operators often need equipment that can work on uneven ground, clear material, and dig with controlled depth. This excavator backhoe loader is well-suited to these conditions because its 4x4 drive support, hydraulic braking, and 520 mm ground clearance help it stay functional on mixed surfaces while handling routine digging and loading tasks. Buyers who need reliable backhoe machinery for drainage cleaning, small excavation, and material handling will find it useful where flexibility and steady operation are required.

FAQ

About Price

A:Different products have different configurations. We will first let our technical staff explain the characteristics of different product configurations through videos, and give you a quote after understanding your needs and address. In addition, if you are a dealer, we will have different discounts based on your purchase quantity.

About Transportation

Q:How to transport

A:If you don't have a freight forwarder, we will help you arrange transportation. There are many ways of transportation, such as delivery to a designated address, delivery to a designated port in the importing country, etc. We have 8 years of international trade experience, and each machine has a certificate that complies with local policies, so you don't need to worry.

Q:How long does it take to ship?

A:For small excavators, if there is stock, we will ship it to you immediately. You can choose to ship it from China or the overseas warehouse closest to you. If there is no stock, we need to arrange production, which will be completed in about 10 to 15 days. In addition, we need 1-2 days to order wooden boxes or pallets, 3 days to book flights/ships and deliver goods to designated ports/airports. Sea transportation has different transportation time limits for different countries. We have a full set of certificates that comply with local policies (such as CE, ERP, EURO 5), and a strong freight company to provide smooth customs clearance services to ensure timely delivery of goods.

About Factory

Q:Are you a real manufacturer?

A:We are a machinery and equipment manufacturer with a history of 13 years. We are an integrated industry and trade company integrating R&D, production and sales. Welcome to visit the factory and look forward to cooperating with you

About Quality

Our machines will be inspected at least three times before each shipment, including quality inspection, performance

inspection,compliance inspection, safety inspection, etc., Each model has relevant certificates that comply with local policies (such as CE\Euro5\EPA, etc.),to ensure that customers receive satisfactory products..For a machinery and equipment manufacturing company with a history of 13 years , compared with temporary benefits, credibility and reputation are the keys we value most.

About After-sales service

We have professional engineers to provide one-on-one guidance on the installation and use of the machine to ensure that you can install it correctly and use it normally. We also guarantee that we are online 24 hours a day. If you have any questions, please contact us.

About product delivery

Q: How many days will it take to deliver the Chinese mechanical products to me?

A: For our products, after we receive your full payment, if we have stock, we will ship it to you immediately. If there is no stock, we need to arrange production, and the production will be completed in about 10 to 15 days. In addition, we need 1-2 days to order wooden boxes or pallets, and 3 days to book flights/ships and deliver goods to designated ports/airports. Different countries have different shipping timelines.We have a full range of certificates in accordance with local policies (such as CE, ERP, EURO5) and a strong freight company to provide smooth customs clearance services to ensure timely delivery of goods.

About product customization

Q: Do you accept customized products?

A: Yes, we accept customized products. Such as color, configuration, assistive devices, etc. If the minimum order quantity is large, we also have very strong discounts.

Buyers Show

Overseas company

Production Environment

Global Services

Mature and Perfect Service Systerm

Certificaitons
