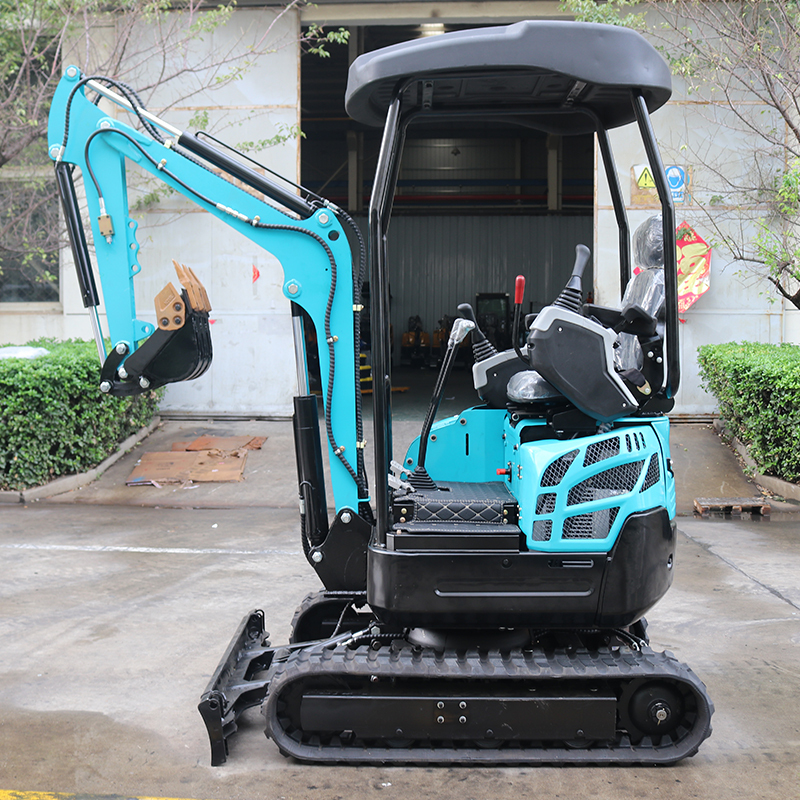

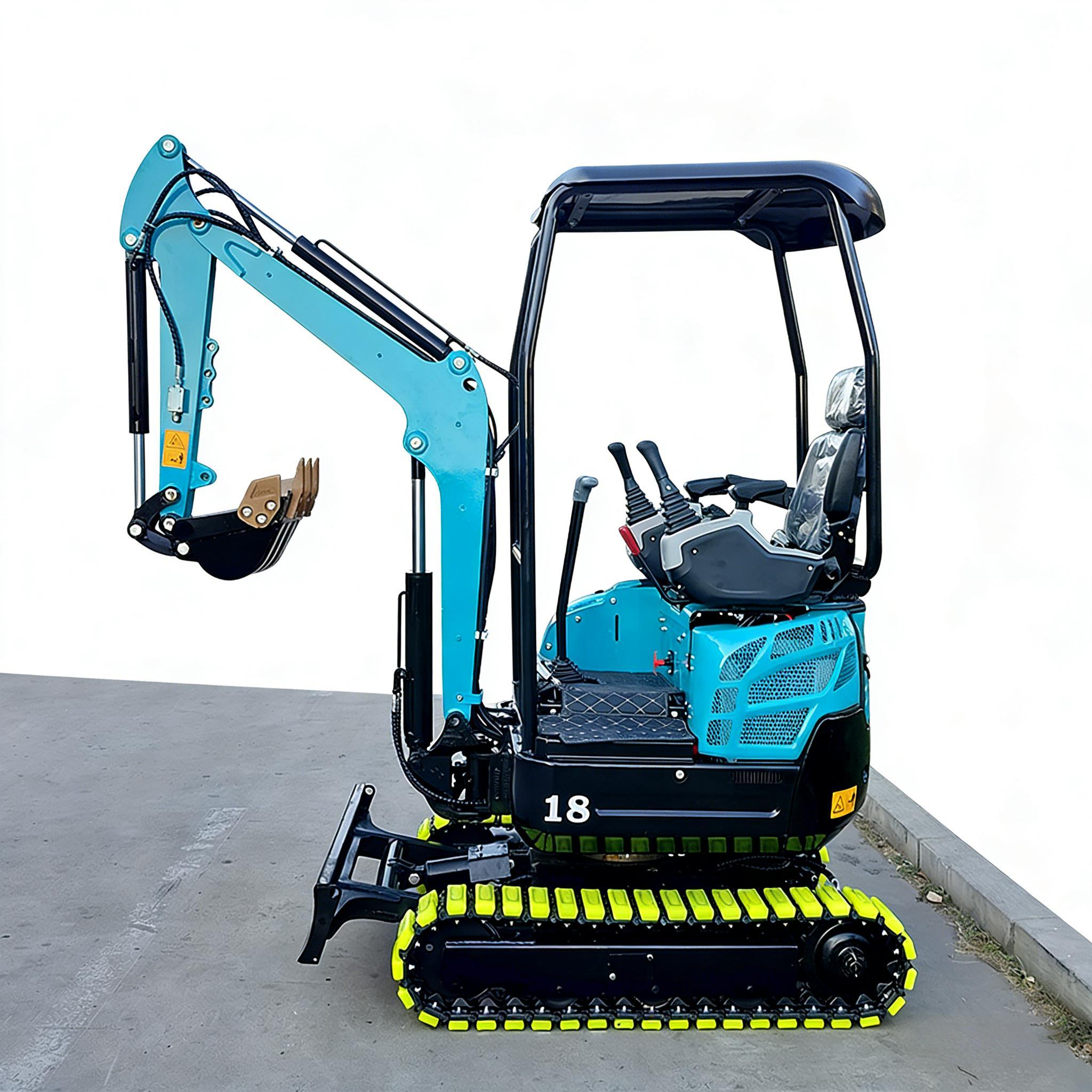

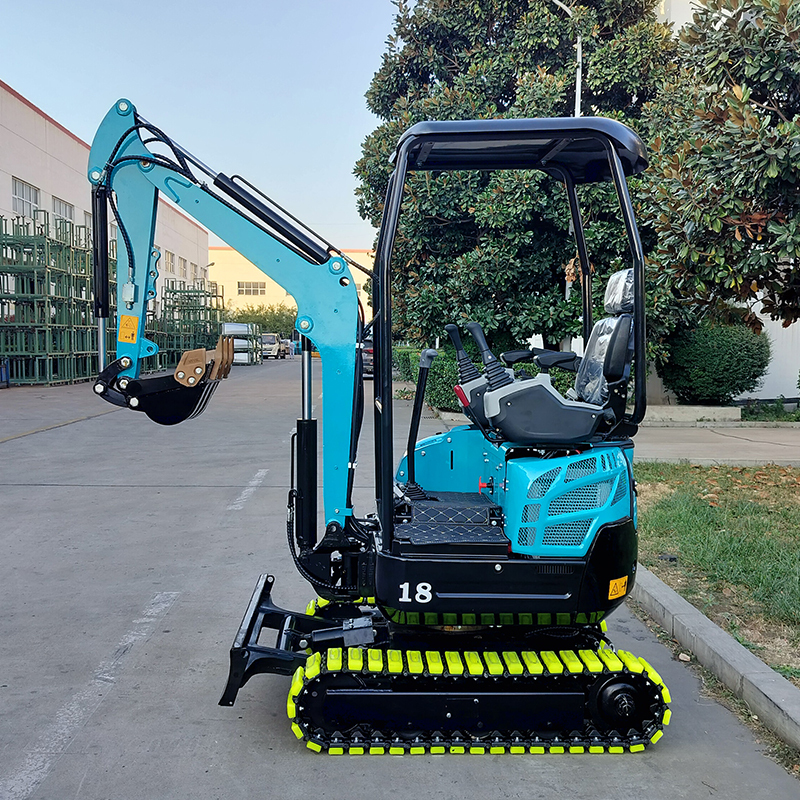

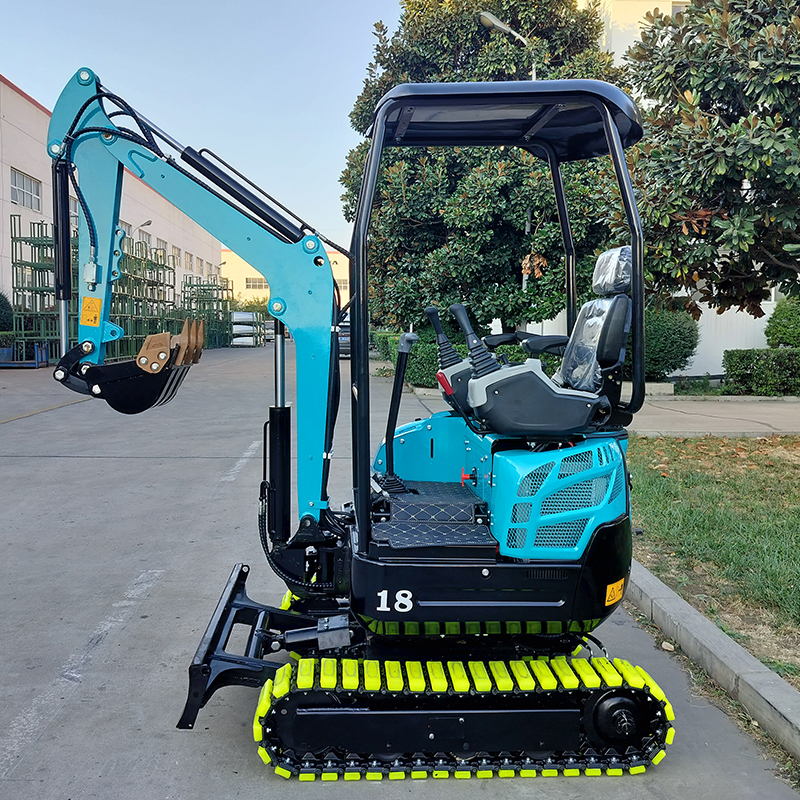

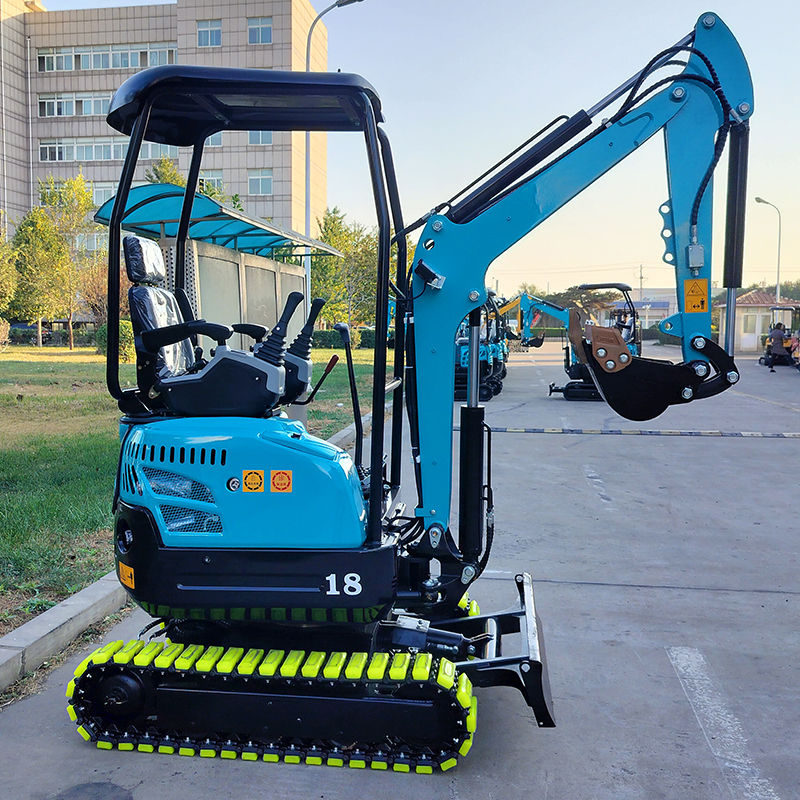

mini excavator - compact site access

No.EZ 18P

1.Compact in size, it is easy to transport and can be loaded onto light trucks or small trailers. Six units can be packed into one 20GP container, saving on freight charges.
1. 体积紧凑,便于运输,可装载到轻型卡车或小型拖车上。一个20金币集装箱可装载六个单位,节省运费。

Adopting hydraulic system components of well-known brands ensures stable quality.
采用知名品牌的液压系统组件,确保了稳定的质量。

Boom deflection design, suitable for narrow working environments; Reinforce the rubber tracks to protect the road surface

It can be equipped with hydraulic pipelines and is suitable for various accessories.

Comfortable seats make the operator's work easier.

  • mini excavator - compact site access
  • mini excavator - compact site access
  • mini excavator - compact site access
  • mini excavator - compact site access
  • mini excavator - compact site access
  • mini excavator - compact site access
  • Description

  • More informations

Compact Mini Hydraulic Excavator for Tight Job Sites
EZ-18P is built to give contractors and operators a practical digging solution where space is limited and transport matters. This mini excavator uses a compact body, a boom deflection design for narrow working environments, and reinforced rubber tracks to help protect the road surface during movement on finished ground. Its size makes it easy to load onto light trucks or small trailers, and six units can be packed into one 20GP container, which helps lower freight cost and simplify planning for distributors and project buyers. For teams looking for mini excavator manufacturers, mini excavator factory sourcing, or dependable excavator manufacturers with practical export-ready packaging, this model offers a balanced combination of mobility, stability, and jobsite usability.

Proven Specifications with Stable Core Components
经过验证的规范与稳定的核心组件

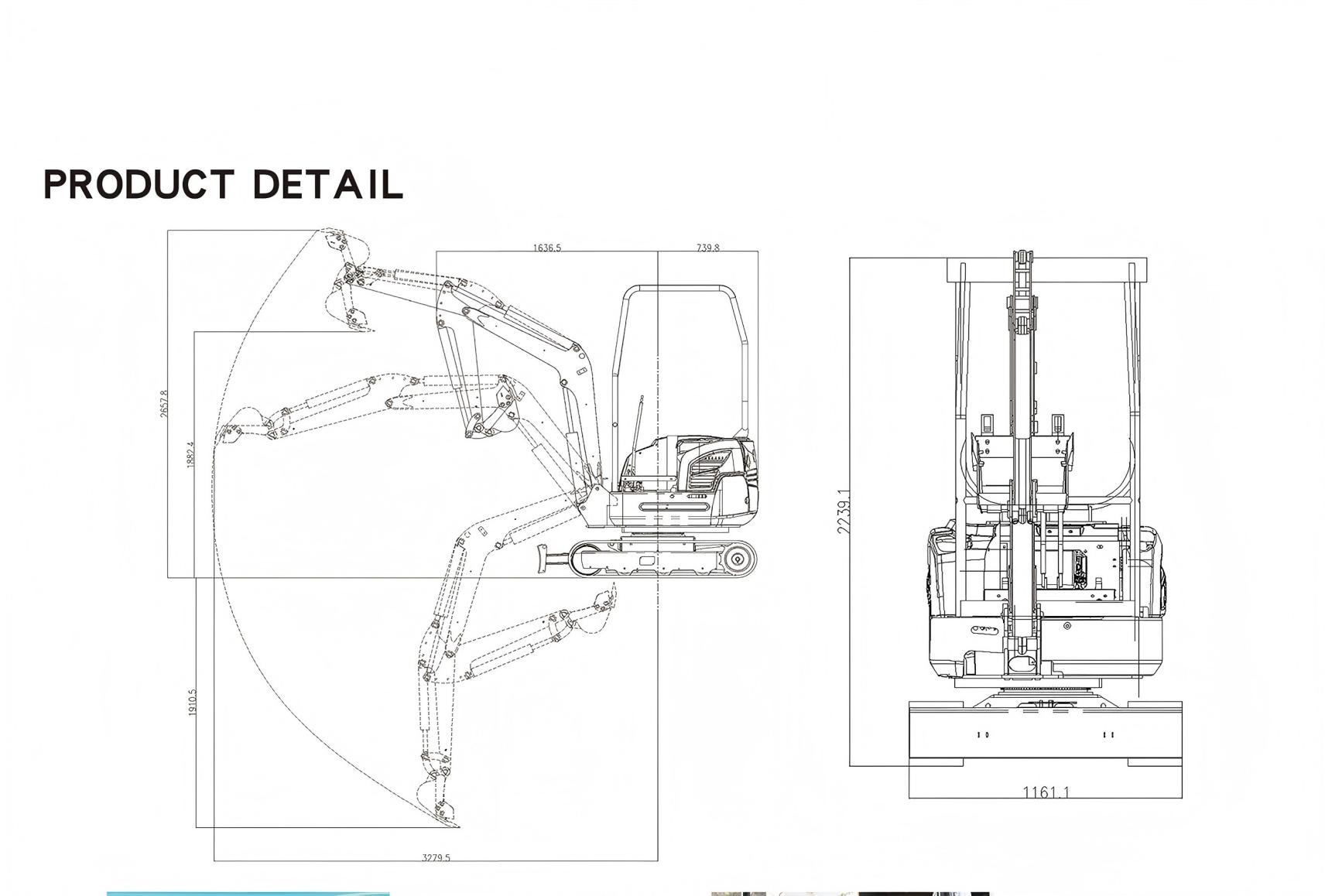

The EZ-18P is engineered with reliable working data that supports everyday excavation, loading, and site preparation tasks. It is powered by a Kubota D722 engine with 10.7Kw output and 0.719L displacement, paired with a hydraulic system using well-known brand components for stable quality and consistent performance. Key operating figures include a machine weight of 1500kg, bucket capacity of 0.03, hydraulic flow rate of 40L/min, job stress of 16mpa, and gradeability of 20%, while the machine delivers a max digging height of 3200mm, max unloading height of 2290mm, max digging depth of 2241mm, max digging radius of 3800mm, and minimum turning radius of 1620mm. These parameters position it as a practical mini hydraulic excavator and mini crawler excavator for buyers who need documented performance, straightforward operation, and stable support from experienced mini equipment suppliers.
EZ-18P 配备了可靠的工作数据,支持日常挖掘、装载和场地准备任务。它搭载了一台久保田 D722 发动机,输出 10.7 千瓦,排量 0.719 升,配合采用知名品牌部件的液压系统,保证稳定的品质和稳定的性能。主要操作数据包括机器重量 1500 公斤,铲斗容量 0.03,液压流量 40 升/分钟,作业应力 16mpa,坡度可达 20%,最大挖掘高度为 3200 毫米,最大卸载高度 2290 毫米,最大挖掘深度 2241 毫米,最大挖掘半径 3800 毫米,最小转弯半径 1620 毫米。这些参数使其成为一款实用的迷你液压挖掘机和迷你履带挖掘机,适合需要性能记录、操作简便和稳定支持的买家。


Well-Suited for Rental Fleets, Landscaping, and Utility Work
非常适合租赁车队、园林绿化和公用事业工作

With track width of 230mm, track ground length of 1130mm, external dimensions of 2200*1160*2200mm, and a 1300*200mm dozer blade, EZ-18P is designed for efficient work in compact spaces, residential areas, indoor-adjacent sites, landscaping projects, trenching, and small construction jobs. The comfortable seat improves operator convenience during longer shifts, and the option to equip hydraulic pipelines expands compatibility with different accessories, giving fleet owners and project teams more flexibility across mixed tasks. For procurement teams, dealers, and rental operators comparing a mini excavator for sale, this model offers a practical mix of transport convenience, functional reach, and attachment readiness that helps reduce downtime and support wider application coverage.
EZ-18P 履带宽度为 230 毫米,履带地面长度为 1130 毫米,外部尺寸为 2200×1160×2200 毫米,推土铲为 1300×200 毫米,设计用于紧凑空间、住宅区、室内邻近场地、园林绿化项目、沟渠挖掘及小型建筑工程中的高效作业。舒适的座椅提升了操作员在长时间班次中的便利性,且可选装液压管道扩大了对不同附件的兼容性,为车队所有者和项目团队在混合任务中提供了更多灵活性。对于采购团队、经销商和租赁运营商比较出售迷你挖掘机的人来说,该型号提供了运输便利性、功能性延伸和安装准备度的实用结合,有助于减少停机时间并支持更广泛的应用覆盖。



Key Advantages  主要优势
Compact Structure for Practical Transport
实用运输的紧凑结构

This mini excavator is built with a compact frame that is easier to move to job sites and can be loaded onto light trucks or small trailers without requiring oversized transport. For dealers, contractors, and excavator manufacturers seeking efficient logistics, this reduces handling cost and makes deployment faster. Six units fit into one 20GP container, which is a clear advantage for mini excavator factory shipping plans because it improves freight utilization and supports stable delivery planning.
这款迷你挖掘机采用紧凑的框架,便于搬运到工地,且可装载到轻型卡车或小型拖车上,无需超大运输。对于寻求高效物流的经销商、承包商和挖掘机制造商来说,这降低了搬运成本并加快了部署速度。六台机组装入一个 20GP 集装箱,这对微型挖掘机工厂运输计划具有明显优势,因为它提升了货物利用率,支持稳定的交付计划。



Model   模型
模型    模型
EZ18
Bucket

Capacity  容量
容量
0.025
Mcchine weight  麦克辛砝码 1500kg  1500公斤 Width  宽度 400mm  400毫米
External dimensions  外部尺寸
外部尺寸    外部尺寸
2200*116000*2200mm  2200*116000*2200毫米
2200*116000*2200mm 2200*  116000*2200 毫米
2200*116000*2200 毫米 2200*  116000*2200 毫米

Engine  发动机
Model name  型号名称
型号名称    名称
KubotaD722  久保田 D722
久保田 D722   久保田 D722
Track ground length  轨道场地长度 1130mm  1130毫米 Displacement  迁移
位移    迁移
0.719Lcc
0.719 升 毫升
Track width  轨道宽度 230mm  230毫米 Output power  输出功率
输出功率    输出功率
10.3Kw(PS
10.3 千瓦(PS
   Max.digging height  最大挖掘高度 2660mm  2660毫米 Tank capacity(L)  储罐容量(L)
储罐容量(L)  罐容量(L)
10L
    Max.unloading height  最大卸载高度 1900mm  1900毫米
Performance  性能
性能
Hydraulic Flow Rate  液压流量
液压流量
40(L/min)   40(L/min)
40(L/min)   40(L/min)
  Max.digging depth  最大挖掘深度 1910mm  1910毫米 Job stress  工作压力 16mpa
    Max.digging radius  最大挖掘半径 3280mm  3280毫米 Gradeability  可分级性 20%
 Min.turning radius   最小转弯半径 1620mm  1620毫米 Dozer blade(Width * height)
推土铲(宽度 × 高度)
1300*200mm  1300×200毫米
1300*200 毫米   1300×200 毫米


Stable Performance and Broad Attachment Compatibility
The machine uses hydraulic system components from well-known brands, which helps maintain consistent operation and supports long service life in daily work. Its boom deflection design makes the mini hydraulic excavator better suited to narrow work areas, while reinforced rubber tracks help protect road surfaces during movement. With hydraulic pipelines available for different accessories, this mini crawler excavator offers practical attachment compatibility that helps operators handle more tasks with one machine and keeps maintenance and parts management more straightforward.



Use Cases
Urban Maintenance and Narrow Access Jobs
On residential streets, utility corridors, and small renovation sites, space is often limited and access is difficult for larger equipment. Users need a machine that can enter tight areas, work close to walls, and avoid damaging the ground surface. This mini excavator fits that environment well because its boom deflection design improves reach in restricted spaces and the reinforced rubber tracks support work on finished surfaces. It gives operators a practical tool for tasks where a larger machine would be hard to position.

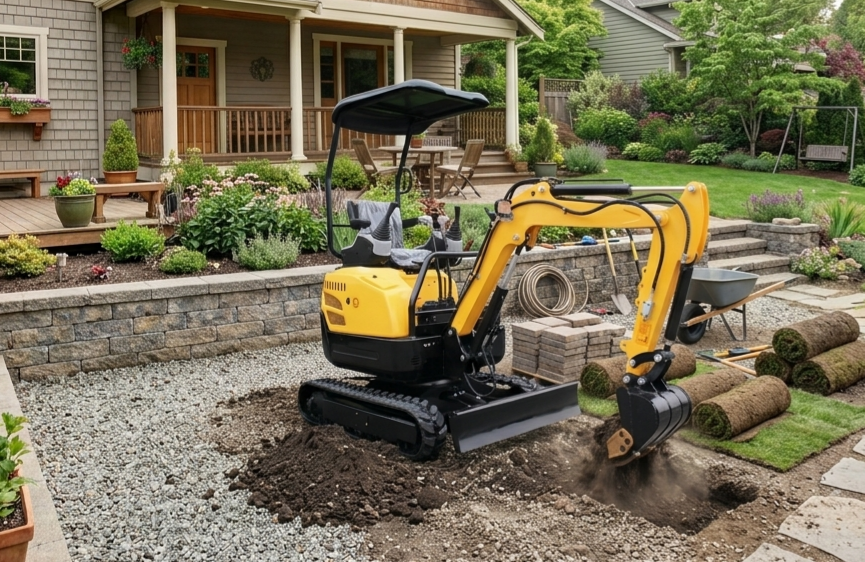

Small Construction, Landscaping, and Farm Support

For garden projects, light excavation, trenching, and farm improvement work, buyers need reliable digging power without the burden of a full-size machine. The mini hydraulic excavator provides the depth, reach, and gradeability needed for routine earthmoving, while its compact size makes it easier to move between sites. Contractors and equipment resellers looking at mini excavator manufacturers often value this balance because the machine is well-suited to projects that require steady performance in varied but space-constrained environments.

FAQ 1  常见问题1
Q: Is this mini excavator suitable for narrow spaces?
问:这款迷你挖掘机适合狭窄空间吗?

A: Yes. The swing boom design allows efficient digging beside walls, fences and in narrow access job sites.
答:是的。摆动臂设计允许在墙边、围栏及狭窄进出工地高效挖掘。

FAQ 2  常见问题2
Q: How many units can fit in one container?
问:一个集装箱能容纳多少个单元?

A: Up to 6 units can be loaded into one 20ft container, helping save shipping costs.
答:最多可装载6个单元装入一个20英尺集装箱,有助于节省运输成本。

FAQ 3  常见问题3
Q: Can it use attachments?
问:它能使用附件吗?

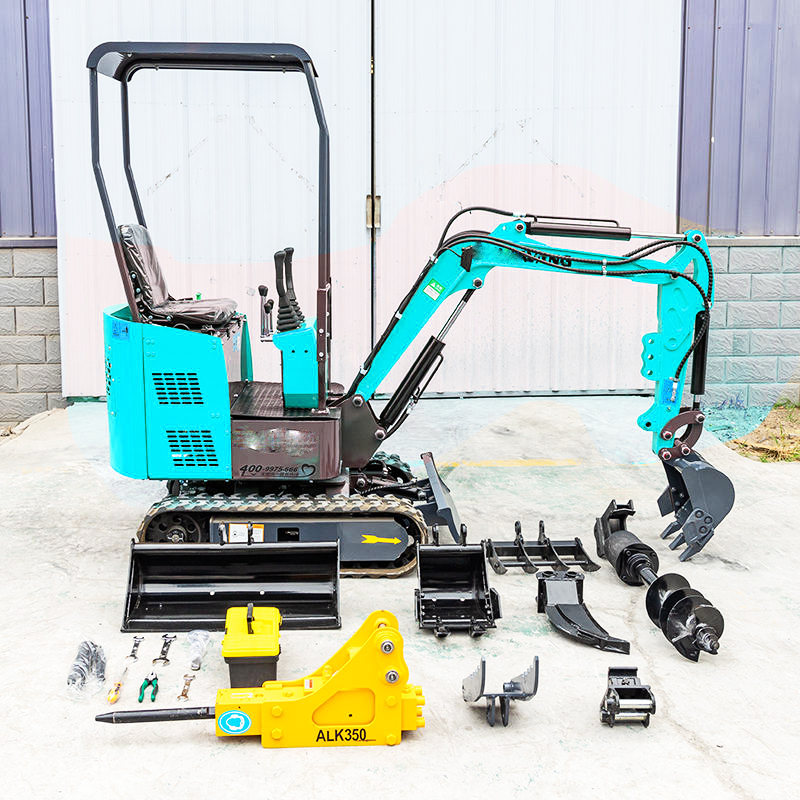

A: Yes. It can be equipped with hydraulic lines for breaker, auger, grapple and other attachments.
答:可以。它可以配备液压管线,用于断路器、螺旋输送器、抓钩及其他附件。

FAQ 4  常见问题4
Q: Are rubber tracks better for residential jobs?
问:橡胶履带对住宅作业更好吗?

A: Yes. Reinforced rubber tracks reduce damage to roads, tiles and finished surfaces.
答:可以。加固橡胶履带可以减少道路、瓷砖和表面的损坏。

FAQ 5  常见问题 5
Q: What jobs is this machine best for?
问:这台机器最适合哪些工作?

A: Landscaping, trench digging, farm work, residential construction and indoor-outdoor small projects.
答:园林绿化、沟渠挖掘、农活、住宅建设以及室内外小型项目。

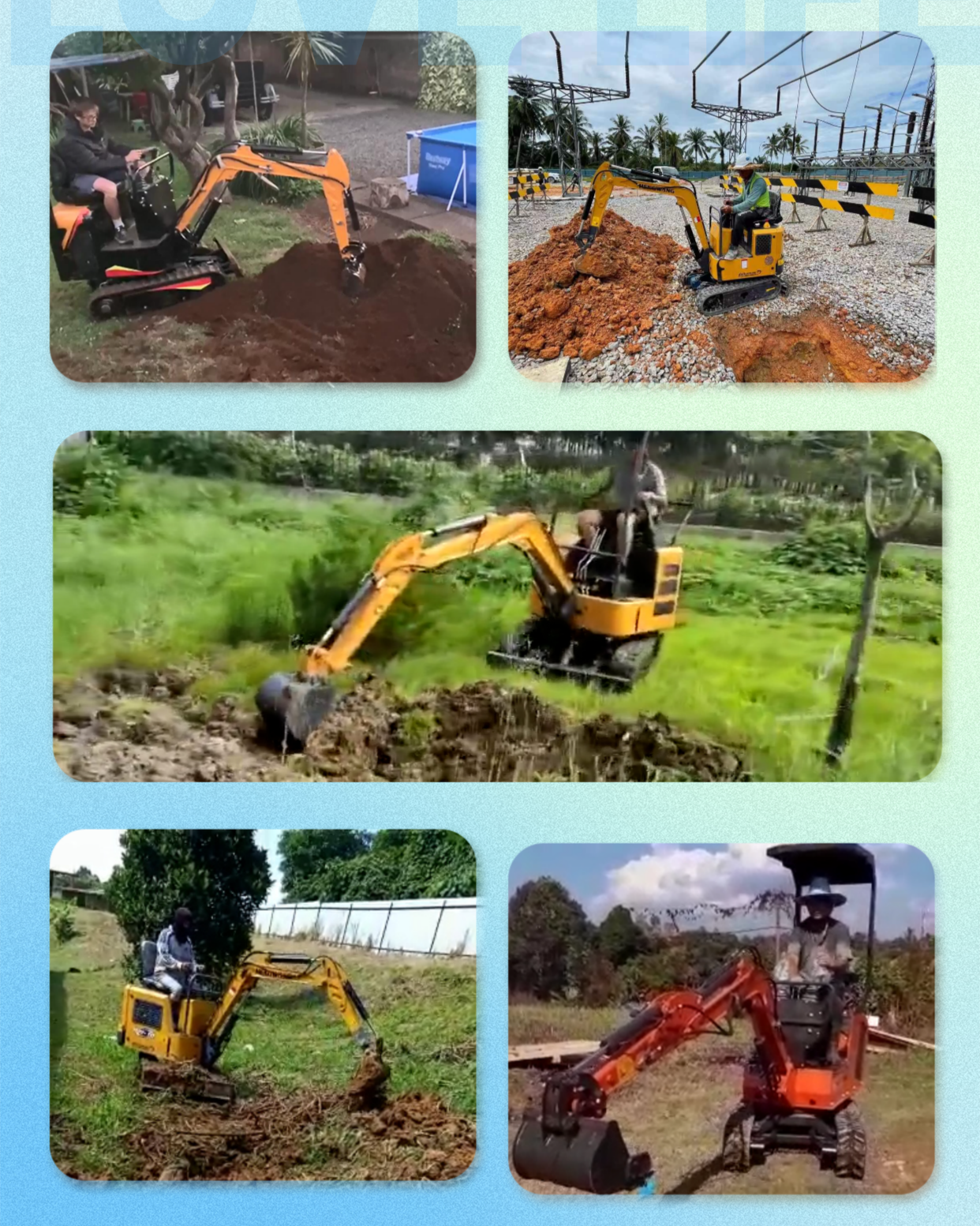

Buyers Show



Overseas company




Production  Environment





Global Services

Mature and Perfect Service Systerm



Certificaitons

What Payment terms would you accept?

Normally we accept L/C, or /T 30% down payment,balance to be paid against BL copy and loadingpictures.

What is your delivery time?

For standard machine, the delivery time is Within 25-35 days after receiving the down payment.

What services would you offer if I buy from you?

Our trained Professional service team offershigh-quality in-time service in a very friendly way.For a good customer experience,the content of pre-sales includes the recommendationbased on the right products on physical condition.All you have to do is to inform us of your needs.

Do you accept small order?

Yes. the MOQ is 1 units for most of products.For very small handling equipments,we can check case by case.
