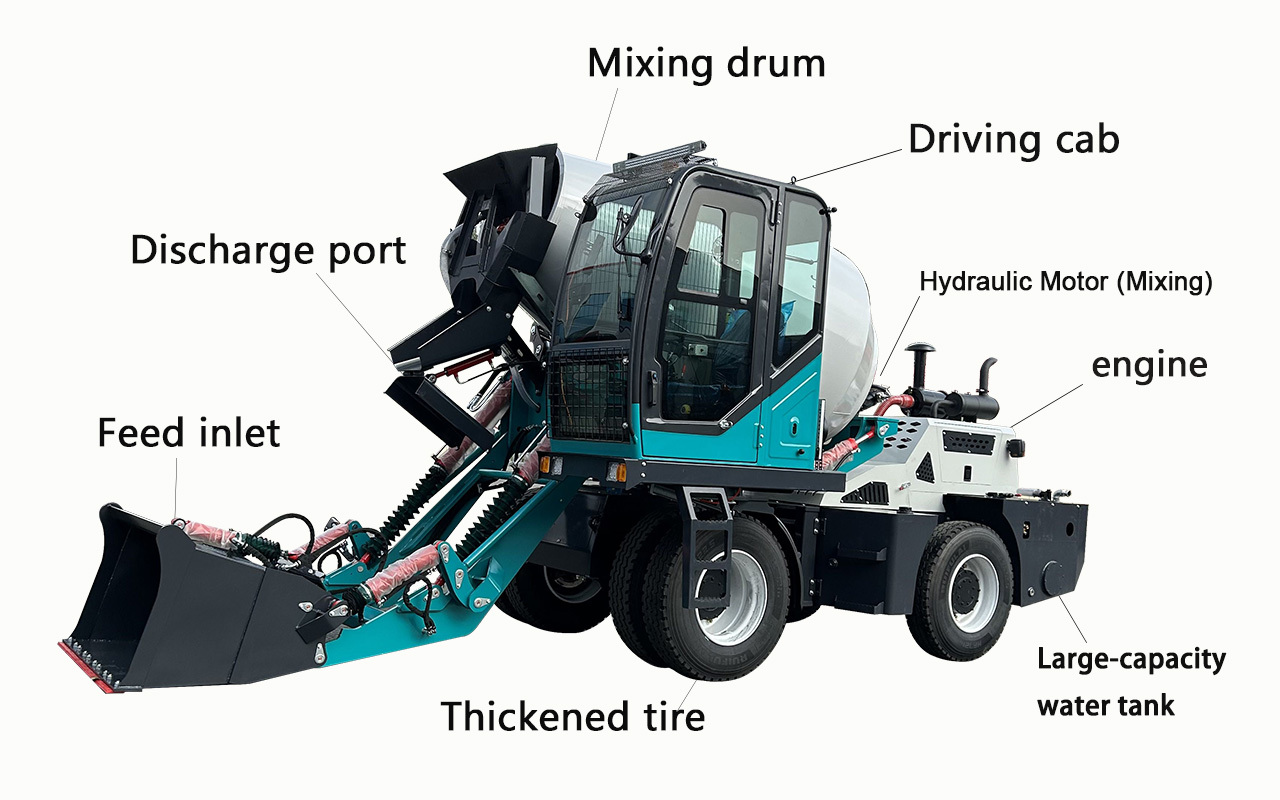

The Self Loading Concrete Mixer Truck is an advanced all-in-one construction machine that combines loading, weighing, mixing, transporting, and discharging functions into one unit. It can automatically load raw materials, mix concrete on-site, and deliver fresh concrete directly to the job location. Only one operator is required to complete the full process, helping contractors save labor cost and improve work efficiency.
Compared with traditional concrete batching plants or mixer transport trucks, this mobile concrete mixer truck is more flexible, cost-effective, and ideal for small to medium construction projects, rural infrastructure, road repair, housing construction, and remote job sites.
| Stats | parameter |
| Actual output volume | 3.5 |
| Mixing tank capacity | 5.7 |
| Angle of inclination | 16 |
| Rotational speed | 18 |
| Direction of rotation | Feed: clockwise Discharge: counterclockwise |
| Slump of concrete | 70-260 |
| Hydraulic transmission system | Hydraulic transmission system |
| Oil pump model | JHP2050 JHP2063 |
| Motor type | BMZ-250 |
| Reducer speed ratio | 1:30 |
| Chassis engine main performance parameters | Chassis engine main performance parameters |
| Engine type | YCD4J22T-115 |
| displacement | 4.33 |
| Rated power | 85 |
| Maximum torque | 1500-2100 |
| Maximum travel speed | 30 |
| Minimum turning radius | 3500 |
| Climbing ability | 26 |
| tyre | 1670R22.5 |
| Driving form | four-wheel drive |
| Maximum loading weight | 9600 |
| wheelbase | 2600 |
| Bucket capacity | 0.5 |
| Water supply system | Automatic filling |
| Tank capacity/water supply form | 650 |
| Vehicle equipped weight | 8200 |
| Overall dimensions (L x W x H) | 5600×2400×2850 |
 |
 |
 |
 |

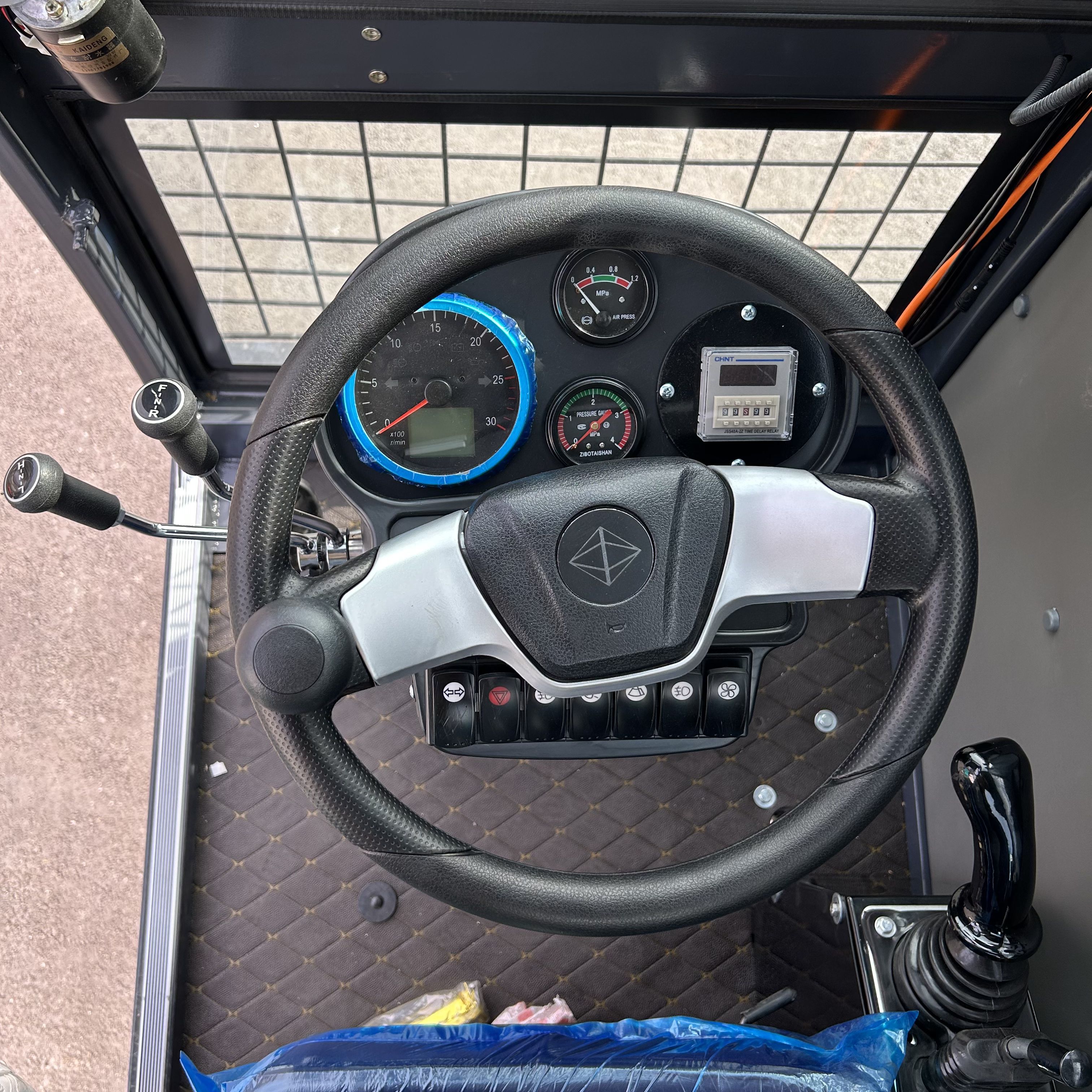

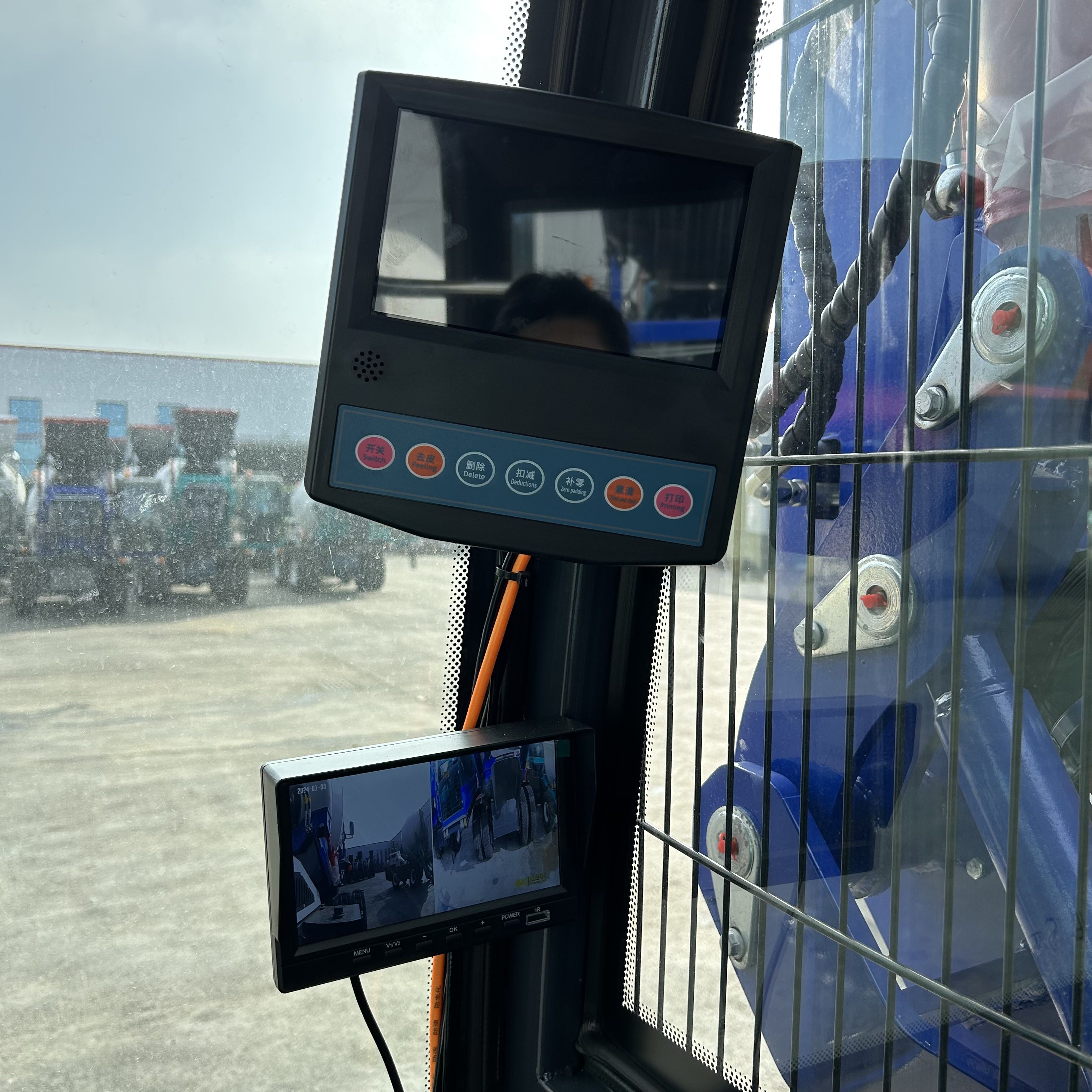

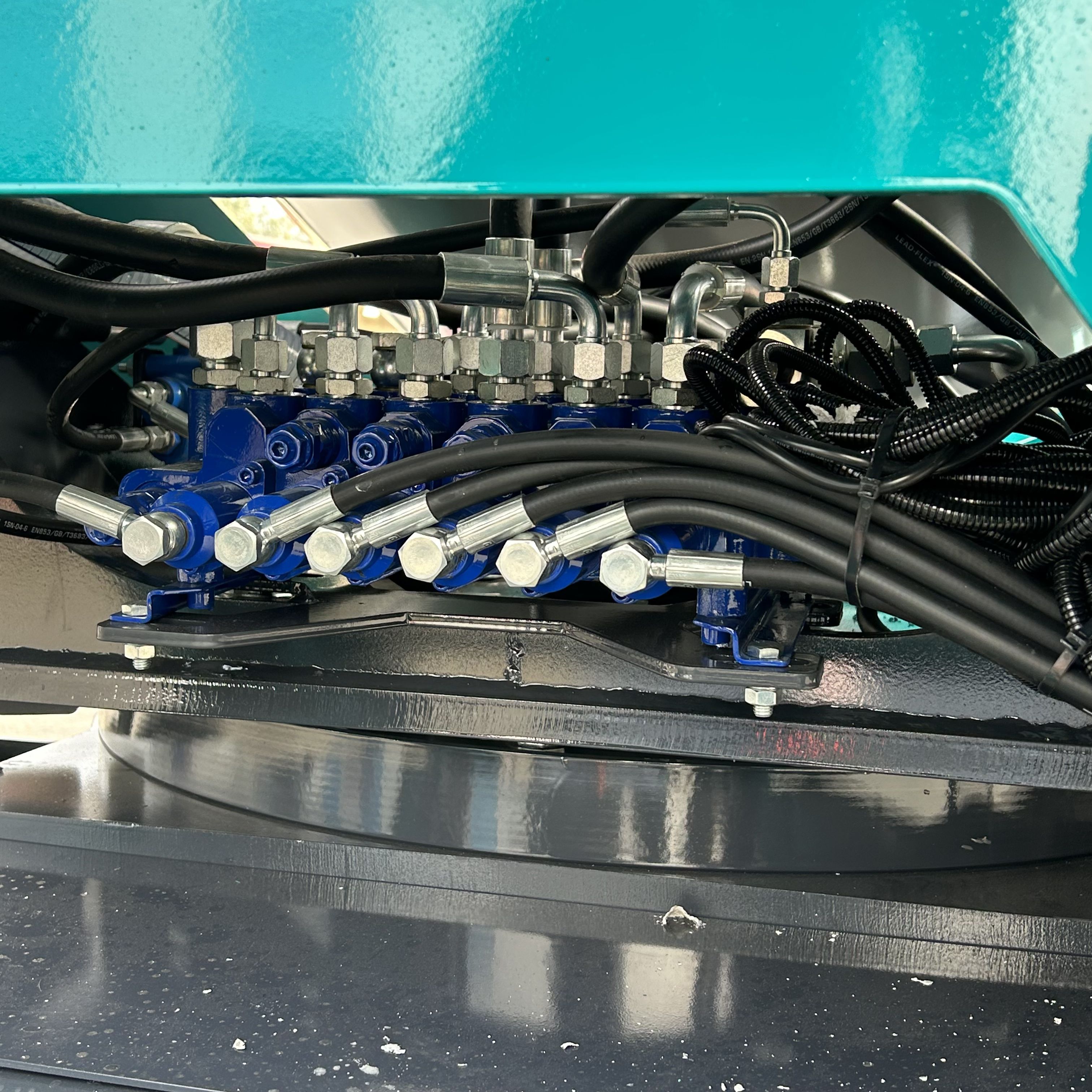

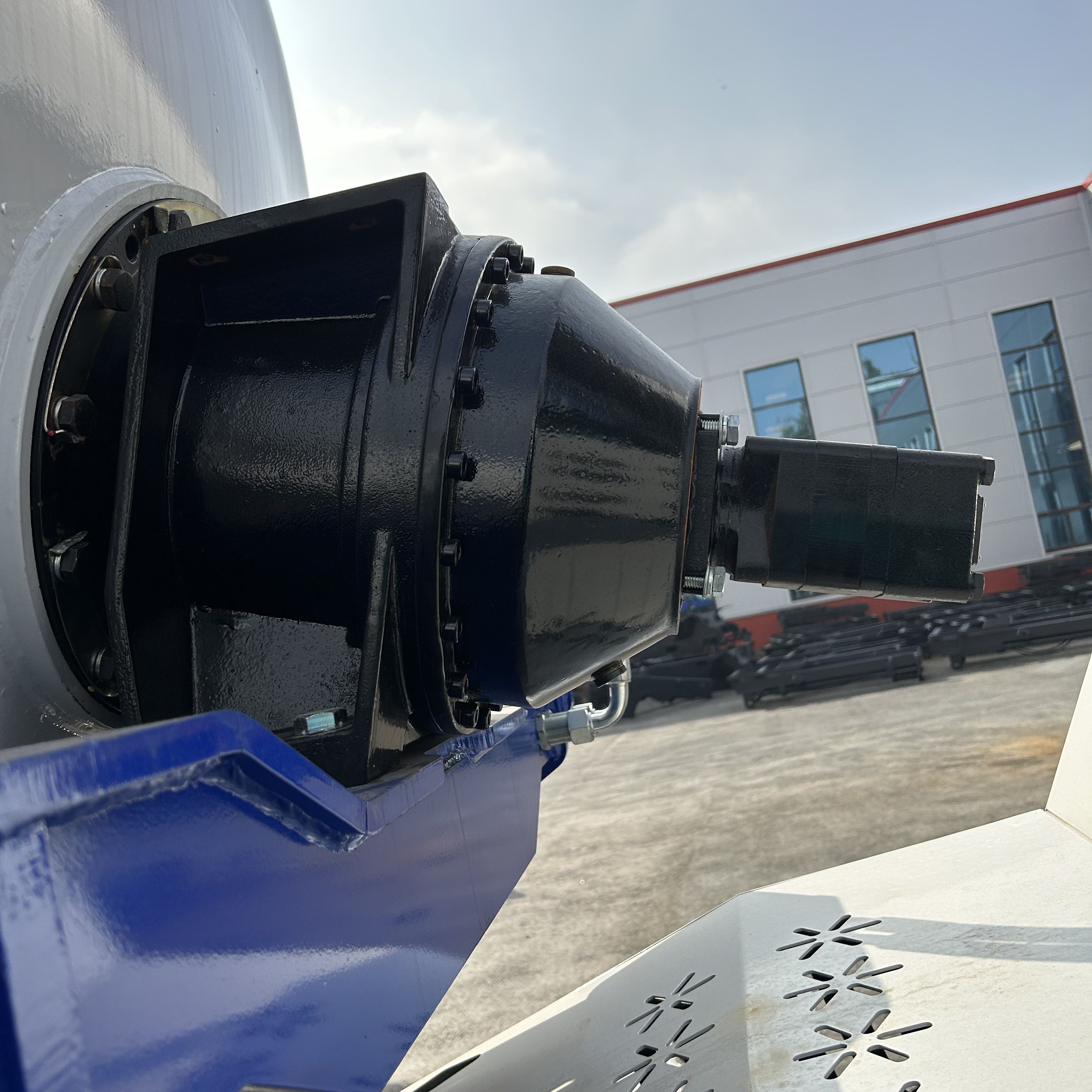

| Dashcam footage ensures a clear, unobstructed view with no blind spots, | A simple and comfortable control panel for more efficient operation | High-torque hydraulic motor: Smooth, jam-free mixing even during prolonged operation | A high-performance hydraulic system ensures smooth operation of the machinery |

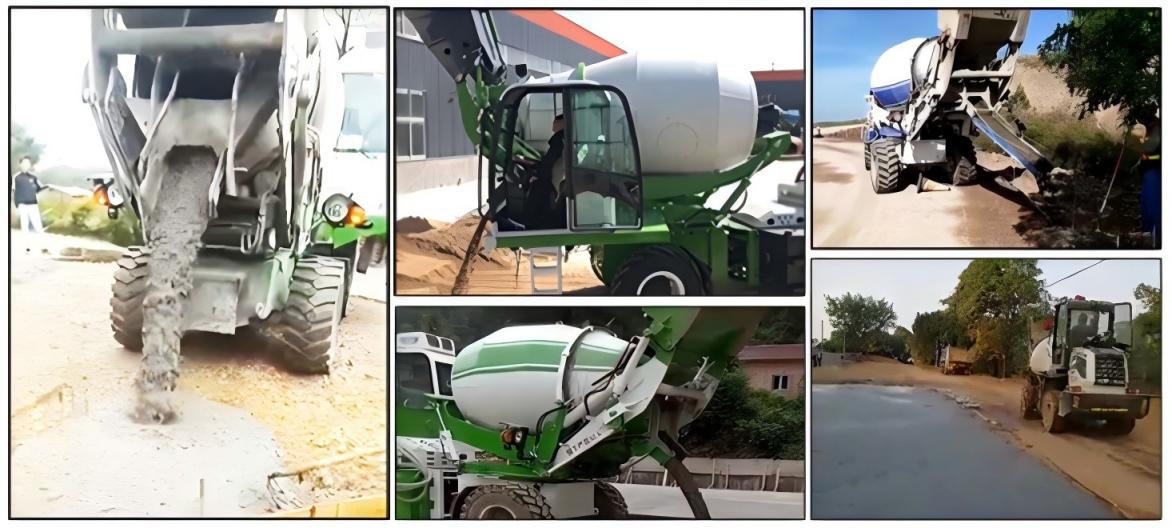

House Building Projects
Residential construction, villas, and private housing.
Road Construction & Repair
Rural roads, highways, sidewalks, and bridge repairs.
Farm & Agricultural Projects
Barns, storage buildings, irrigation foundations.
Remote Construction Sites
Mountain areas, villages, islands, undeveloped areas.
Government Infrastructure Projects
Schools, hospitals, drainage systems, public works.
Small & Medium Contractors
Perfect for contractors who need flexible concrete production.
✅ 8+ Years Factory
✅ Export 80+ Countries
✅ Spare Parts Support
✅ Fast Delivery
✅ OEM Customization
✅ 24/7 Service
Q: What is a self loading concrete mixer truck?
A: It is an all-in-one machine that combines loading, mixing, transporting, and unloading concrete in one unit.
Q: How many workers are needed to operate it?
A: Normally only one skilled operator is required.
Q: Is it suitable for rough roads and remote areas?
A: Yes, the 4x4 drive system makes it ideal for off-road and remote construction sites.
Q: What capacity models are available?
A: We offer 1.5m³, 2.0m³, 2.5m³,3.0m³ 3.5m³ ,4.0m³ and 4.5m³ models.
Q: Why choose a self loading mixer instead of a batching plant?
A: It is more flexible, lower cost, easier to move, and ideal for small to medium projects.
